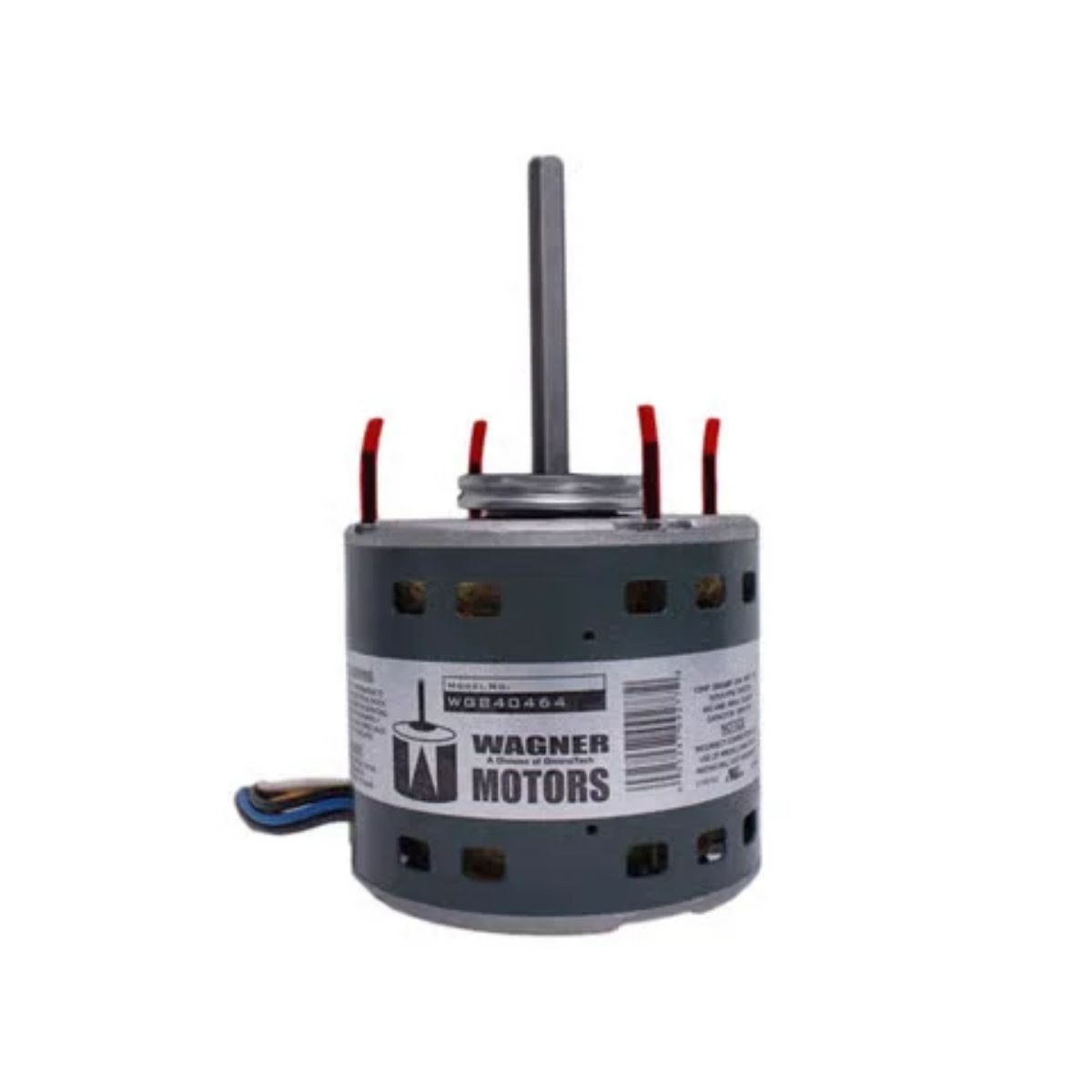

This Wagner WG840464 Multiple Horsepower Direct Drive Furnace Blower Motor, 208-230V, 1075/4 Speed, 1/2HP MAX is specially designed to cover a range of applications. The motor is electrically reversible and features 36 in. leads to ease installation.
- Motors feature reversing plugs, extended thru bolts, 36 in. leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
- Run capacitor connections are insulated for increased safety and flag disconnects are provided
- 60 Hertz, 3.6 Amps, Sleeve Bearings, 5.625 in. body diameter, 10/370 Capacitor, open enclosure, insulation class B, PSC motor type, Belly Band mounting, 1075 RPM's, 4 speeds, 130 degree Fahrenheit temperature rating, .5 in. x 5 in. shaft
- 208-230 Volts, 1075 RPM, 10/370 Capacitor, belly band mount, reversible rotation, 1/2 in. shaft diameter, 3.6 amps, 4 speeds
- 60 hertz, B insulation class, 130 degree F temperature rating, 5 in. shaft length.
