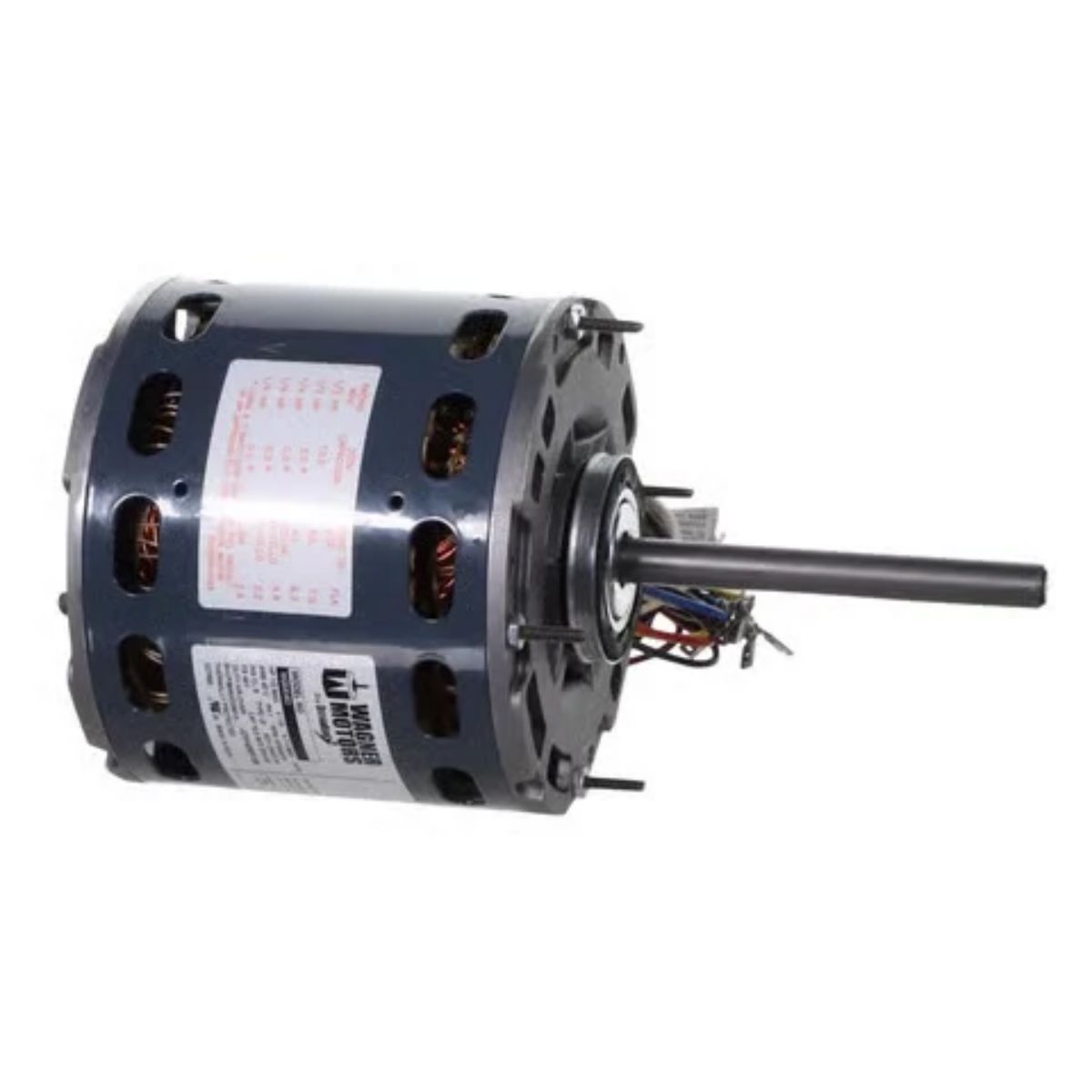

The Multi-Horsepower motors are specially designed to cover a range of applications. The direct drive furnace blower motors range from 1/2 to 1/6, all in 115 volts at 1075rpm. These motors feature reversing plugs, extended thru bolts 36 in. leads and are designed for 370 volt capacitors. Installs with all 48 mounting brackets.
- Motors feature reversing plugs, extended thru bolts, 36 in. leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
- Run capacitor connections are insulated for increased safety and flag disconnects are provided
- Temperature rating 40 deg. C - 130 deg. F
- 115 Volts, 1075 RPM, 370 VAC Capacitor, Shaft up, shaft down, or belly band mount, CW/CCW rotation, 38 in. and 35 in. lead wire length, 1/2 in. shaft diameter, 7 amps, 3 speeds
- 60 hertz, B insulation class, 48 frame size, 140 degree F temperature rating, #18 AWG lead wire gauge, 4-1/2 in. shaft length.
