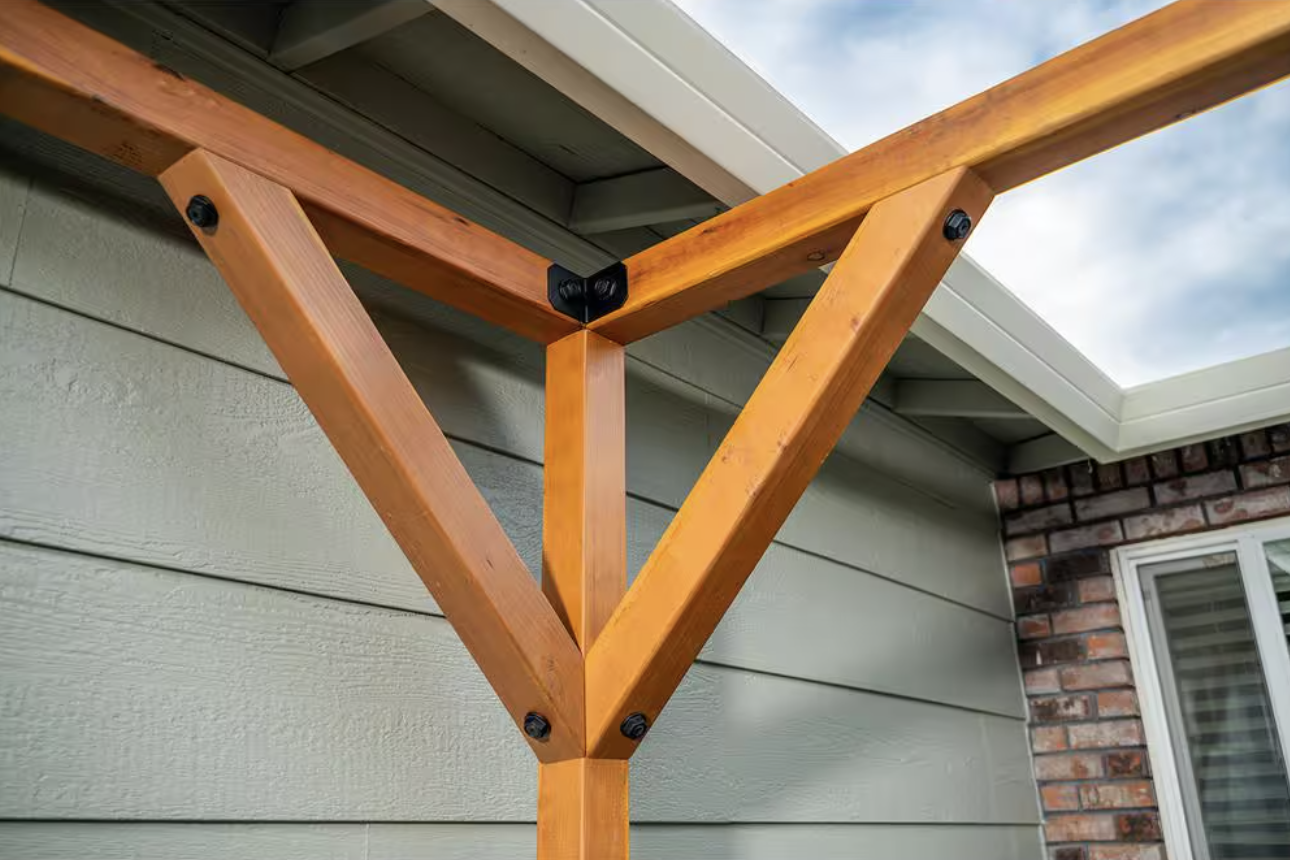

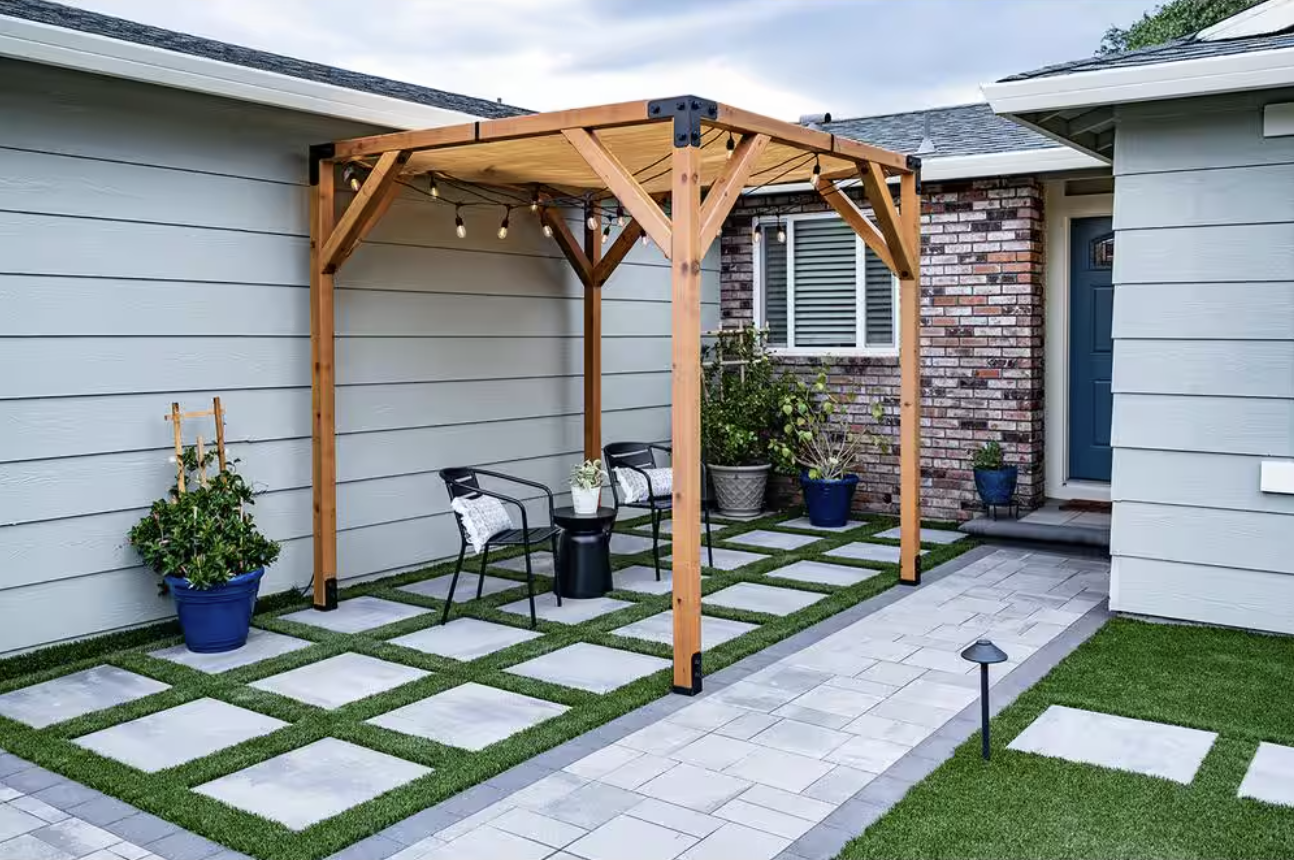

The Simpson Strong-Tie Outdoor Accents DIY pergola hardware kit is ideal for building an open-top pergola up to 10 ft. x 10 ft. The hardware kit includes straps, post bases and angle connectors from our Avant Collection, all in a stylish black powder-coat finish. Our structural fastener and hex-head washer combo are also included for easy installation.

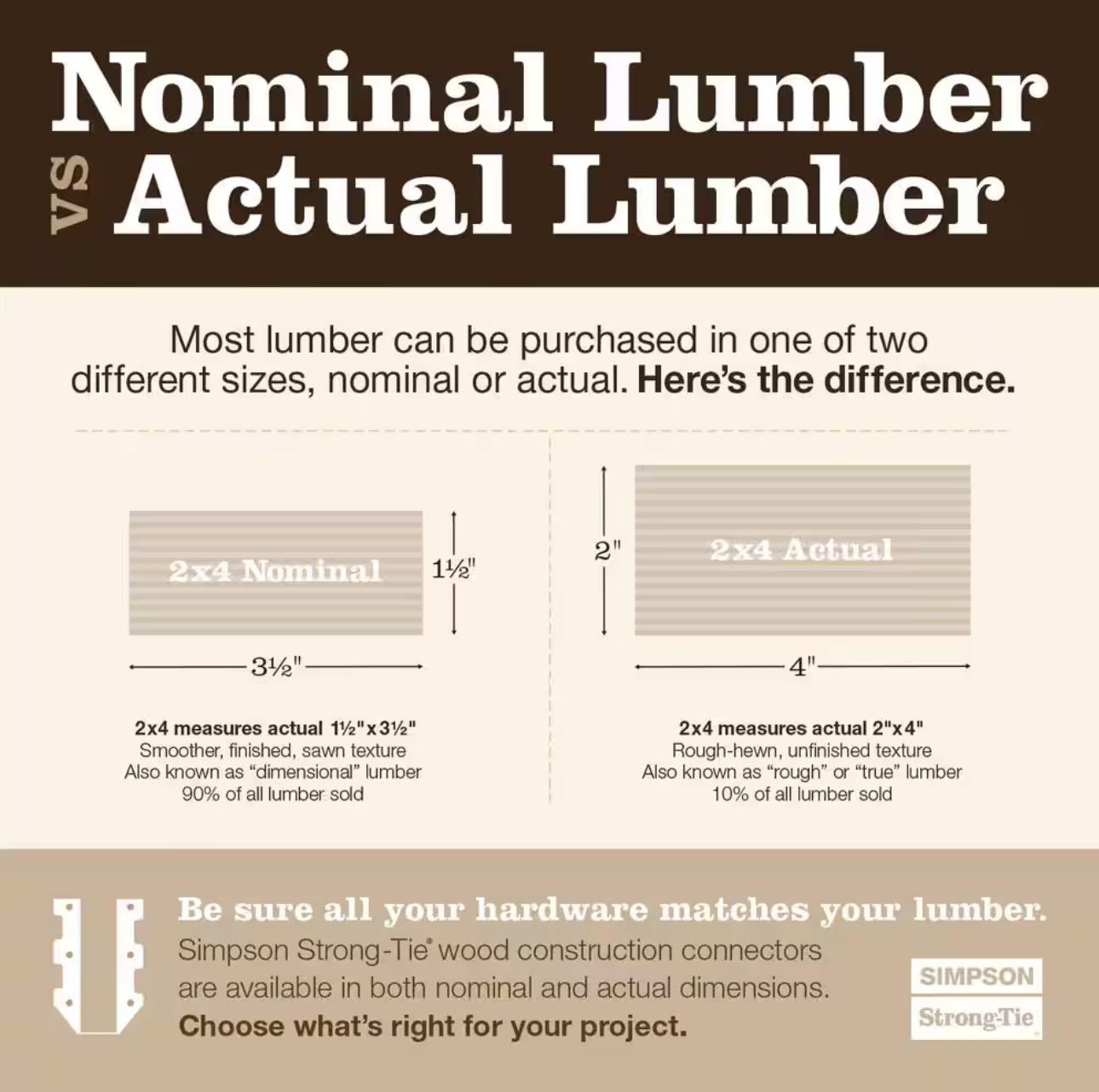

Designed for use with nominal 4x4 lumber

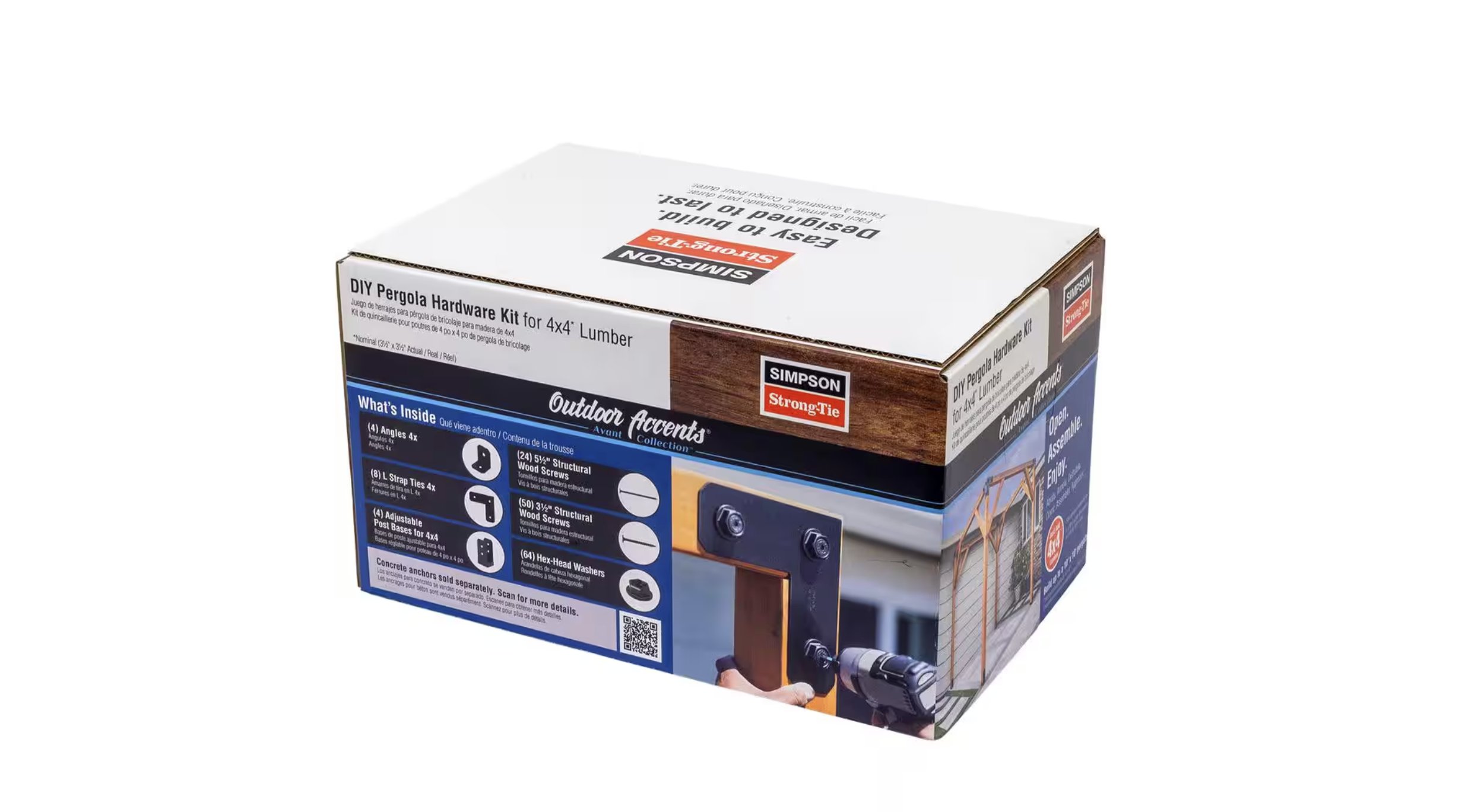

All the hardware for building up to a 10 ft. x 10 ft. pergola is in one box

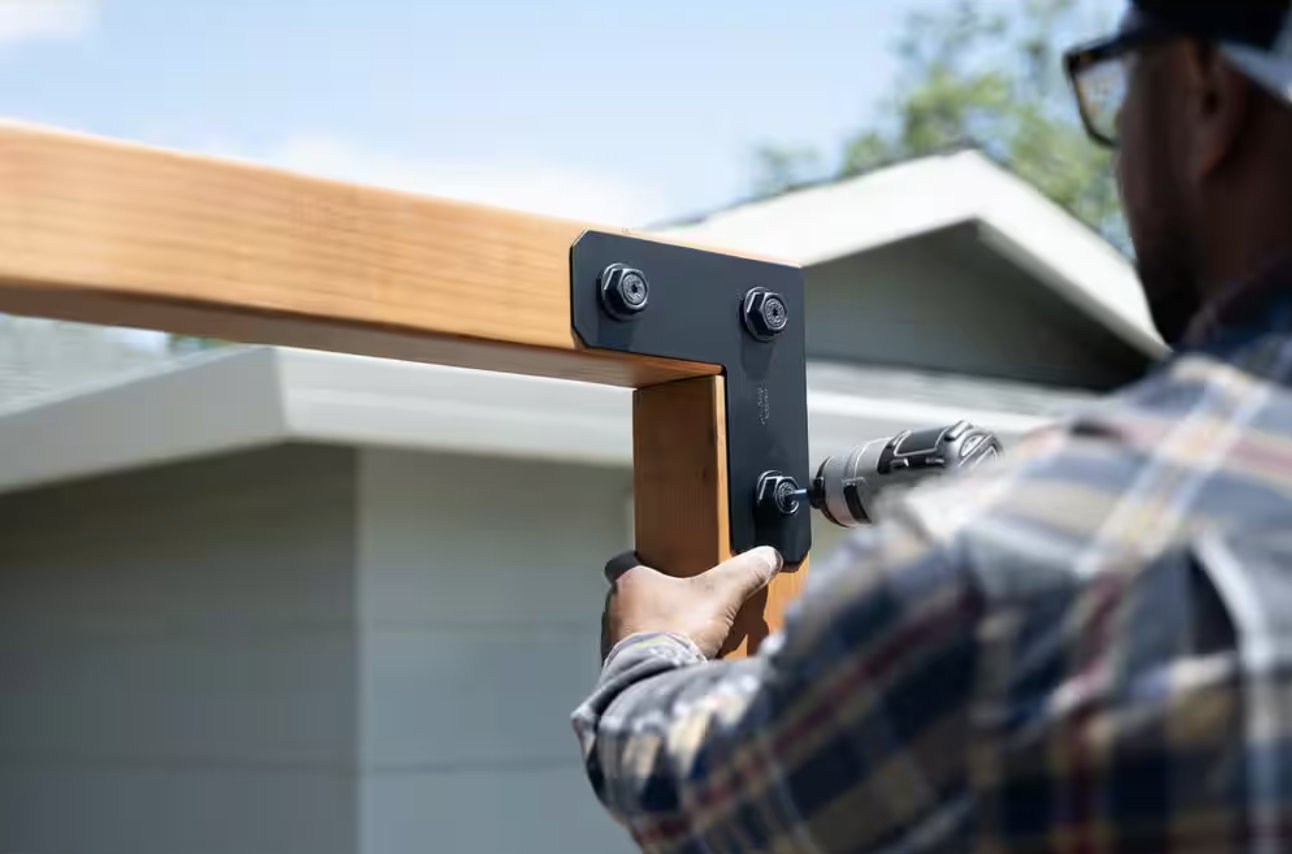

Outdoor Accents connectors and fasteners are easy to install and make it possible for DIYers and homeowners to build a strong pergola
Free plans and cut sheets are available for building an 8 ft. x 8 ft. or 10 ft. x 10 ft. pergola; download information provided on each box

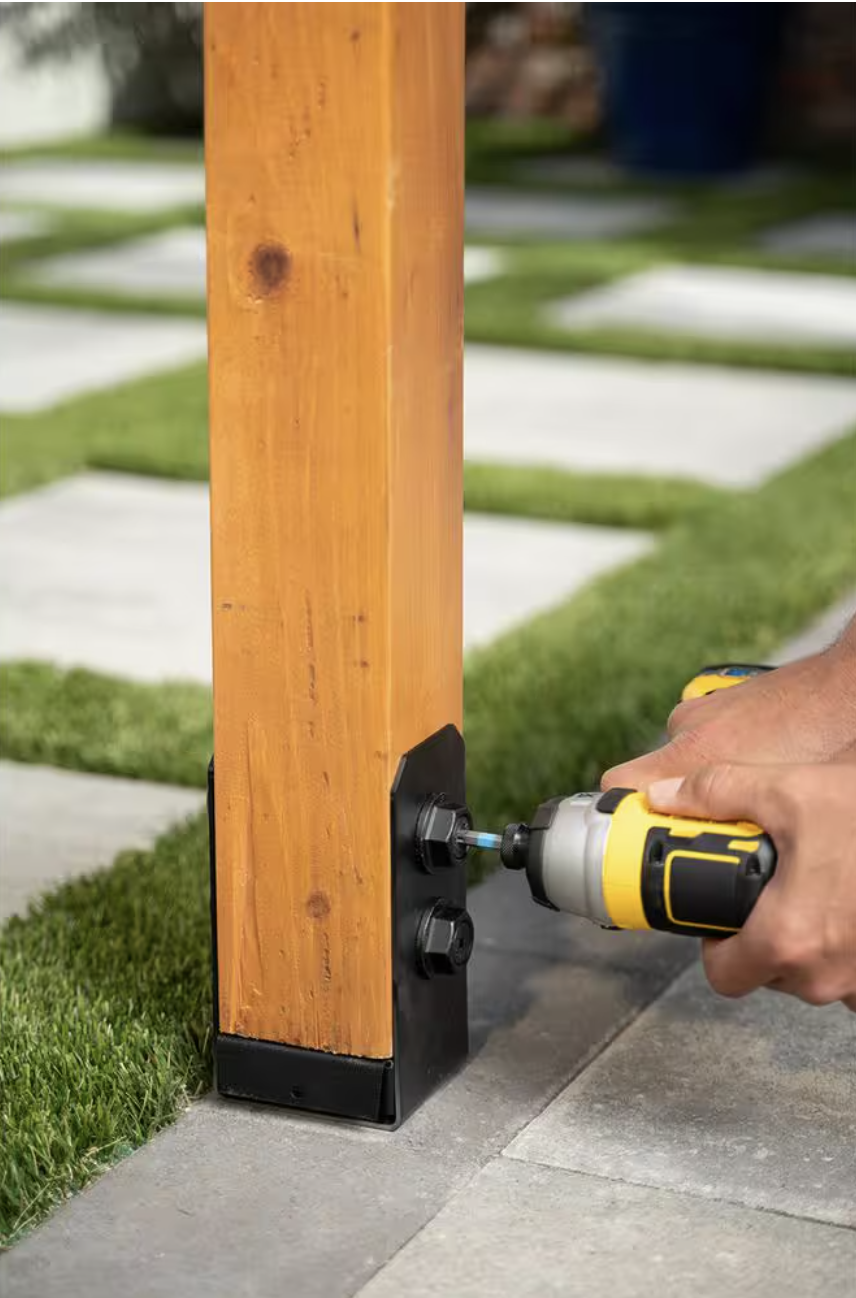

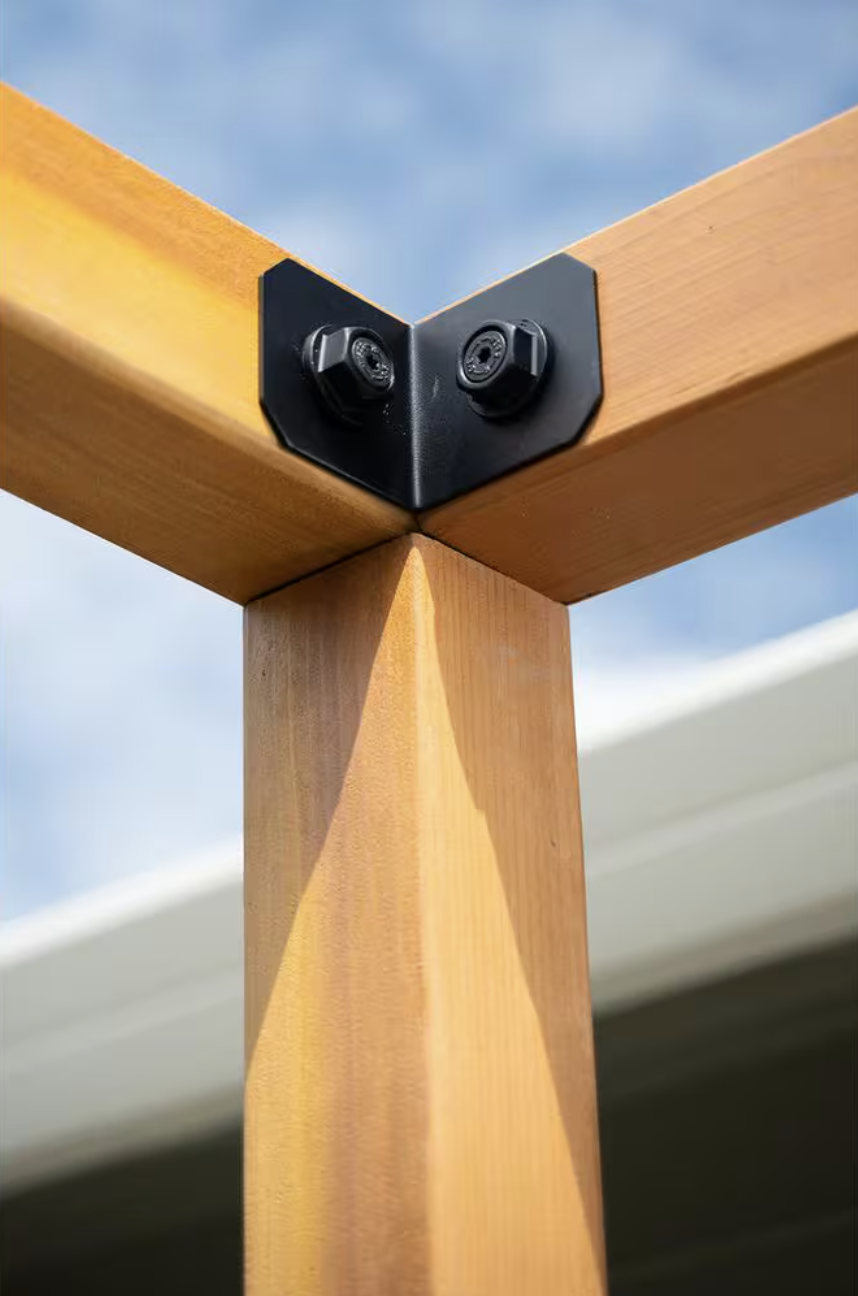

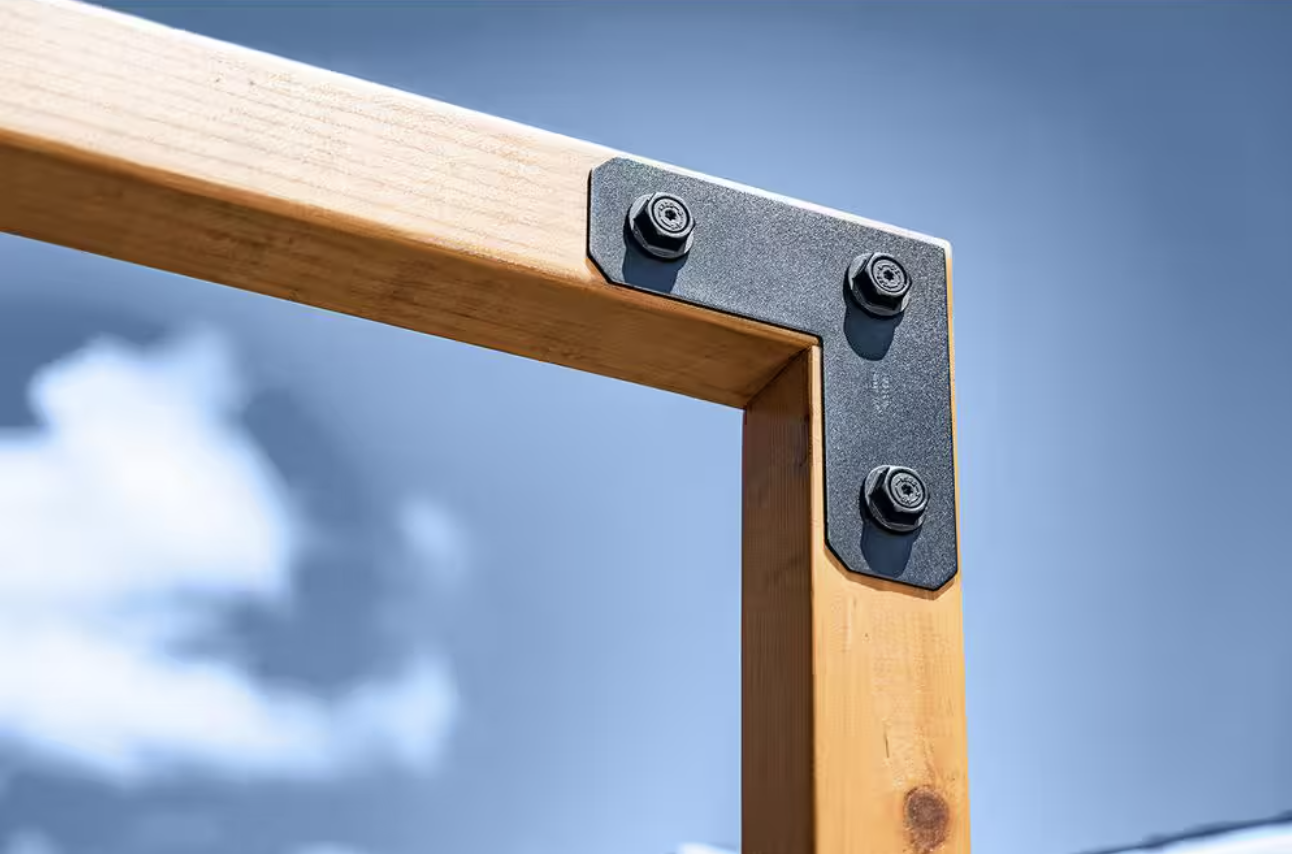

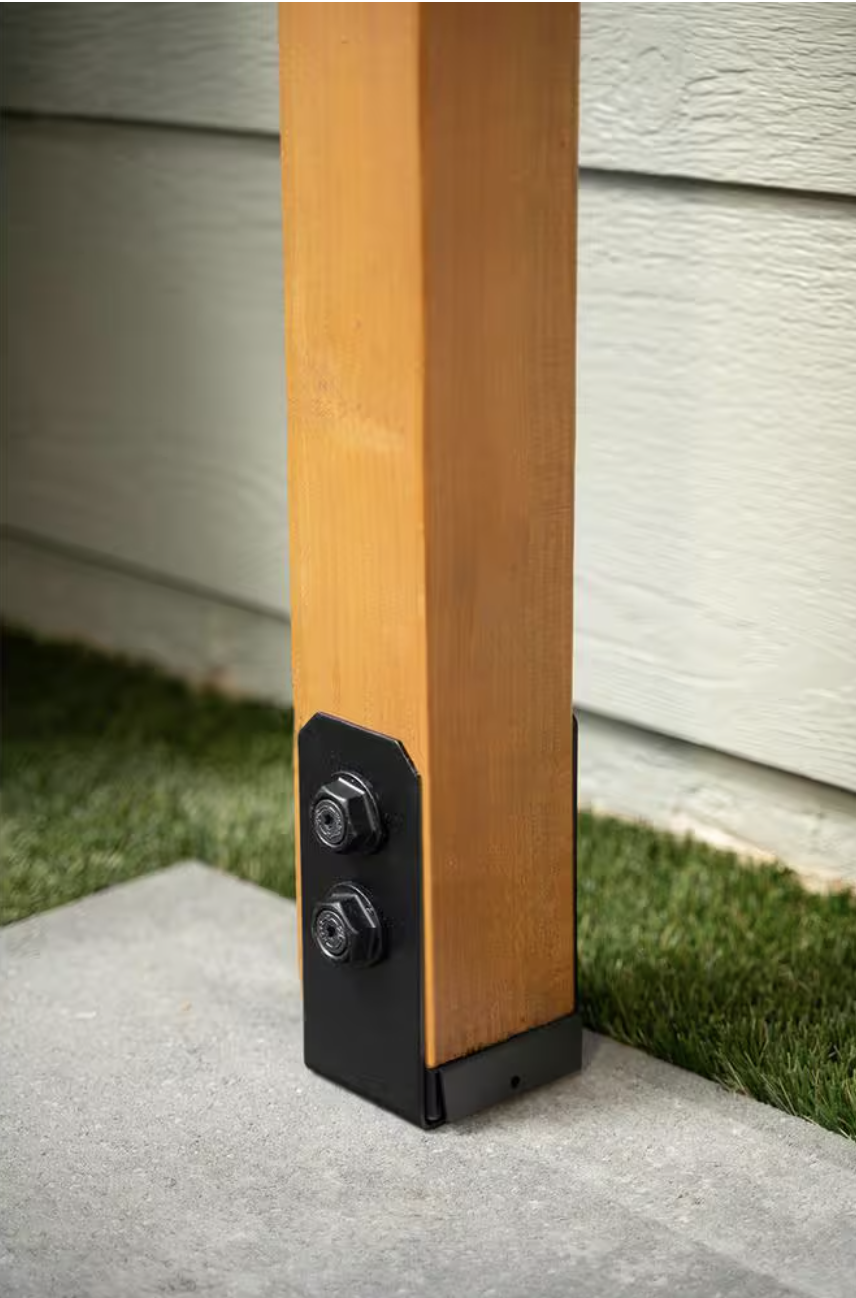

Made from 14-gauge steel (APVA4); 12-gauge (APVL4); 16-gauge base, 12-gauge strap (APVB44)
ZMAX galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications
Installs with (24) 5-1/2-in. Outdoor Accents Structural Wood Screws (SDWS22512DBB), (50) 3-1/2-in. Outdoor Accents Structural Wood Screws (SDWS22312DBB) and (64) STN22 Outdoor Accents Hex-Head Washers (fasteners included); recommended anchorage is (4) 5/8-in. x 5-in. mechanically galvanized Titen HD screw anchors (THDB62500HMG) into 6-3/4-in. min. concrete thickness (anchors sold separately)
