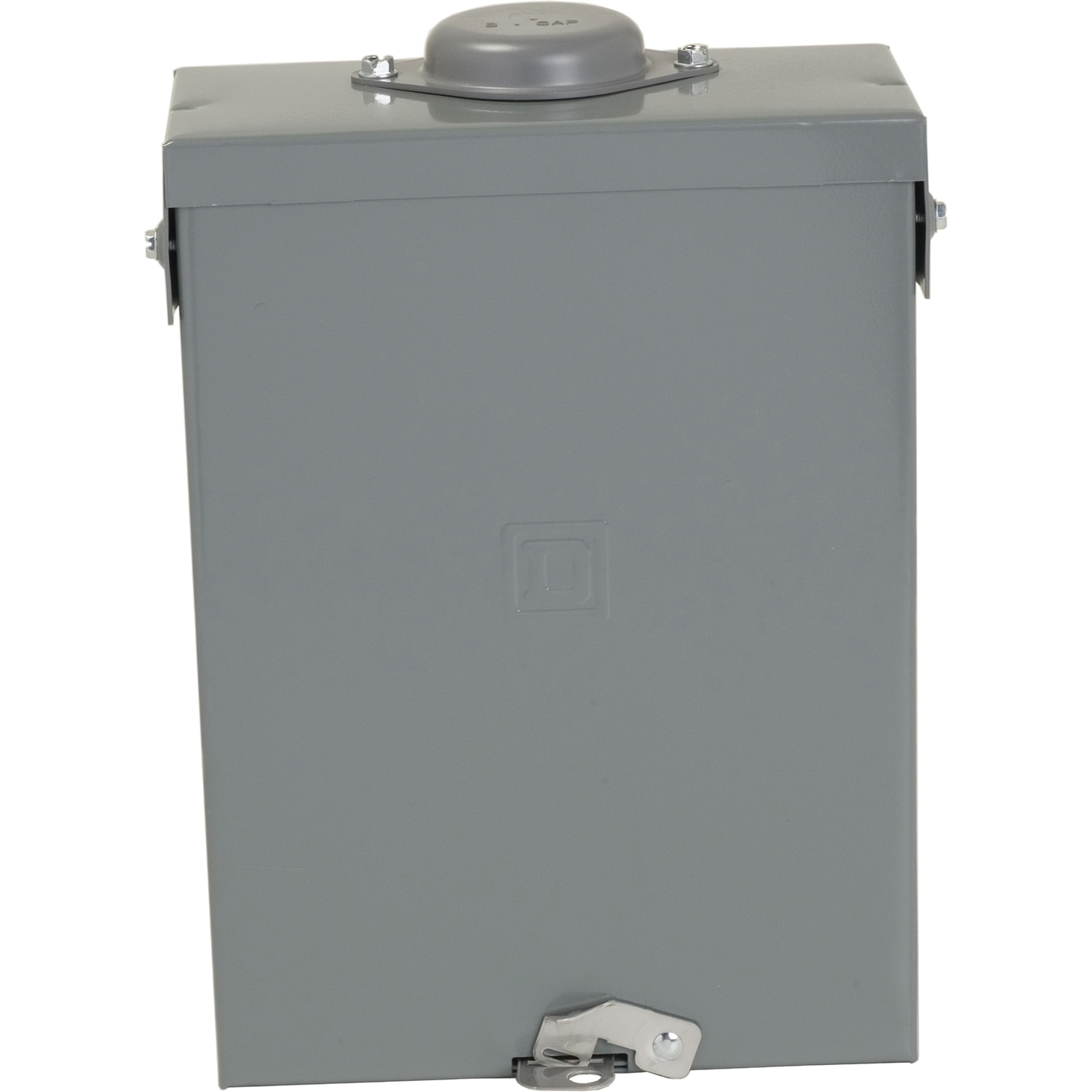

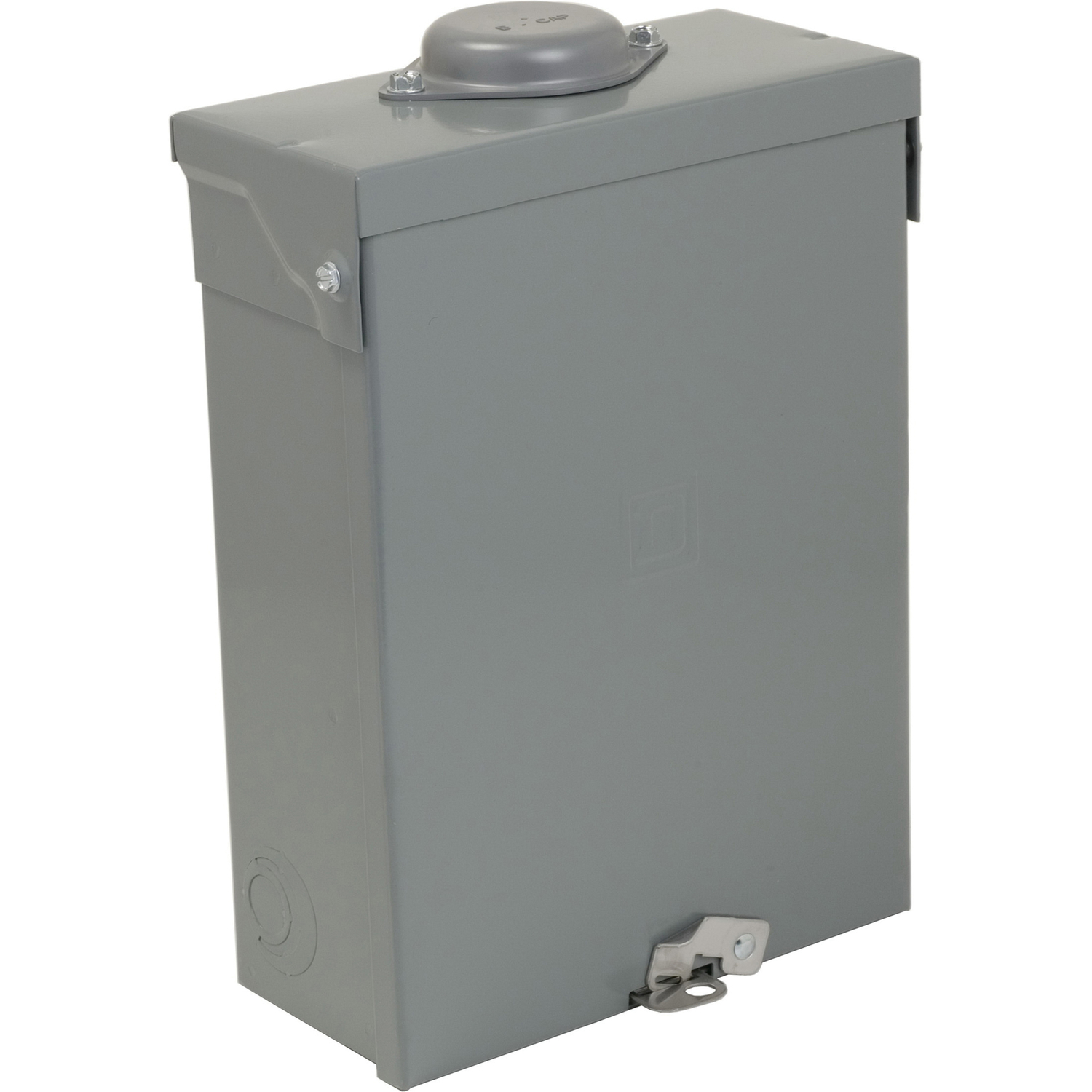

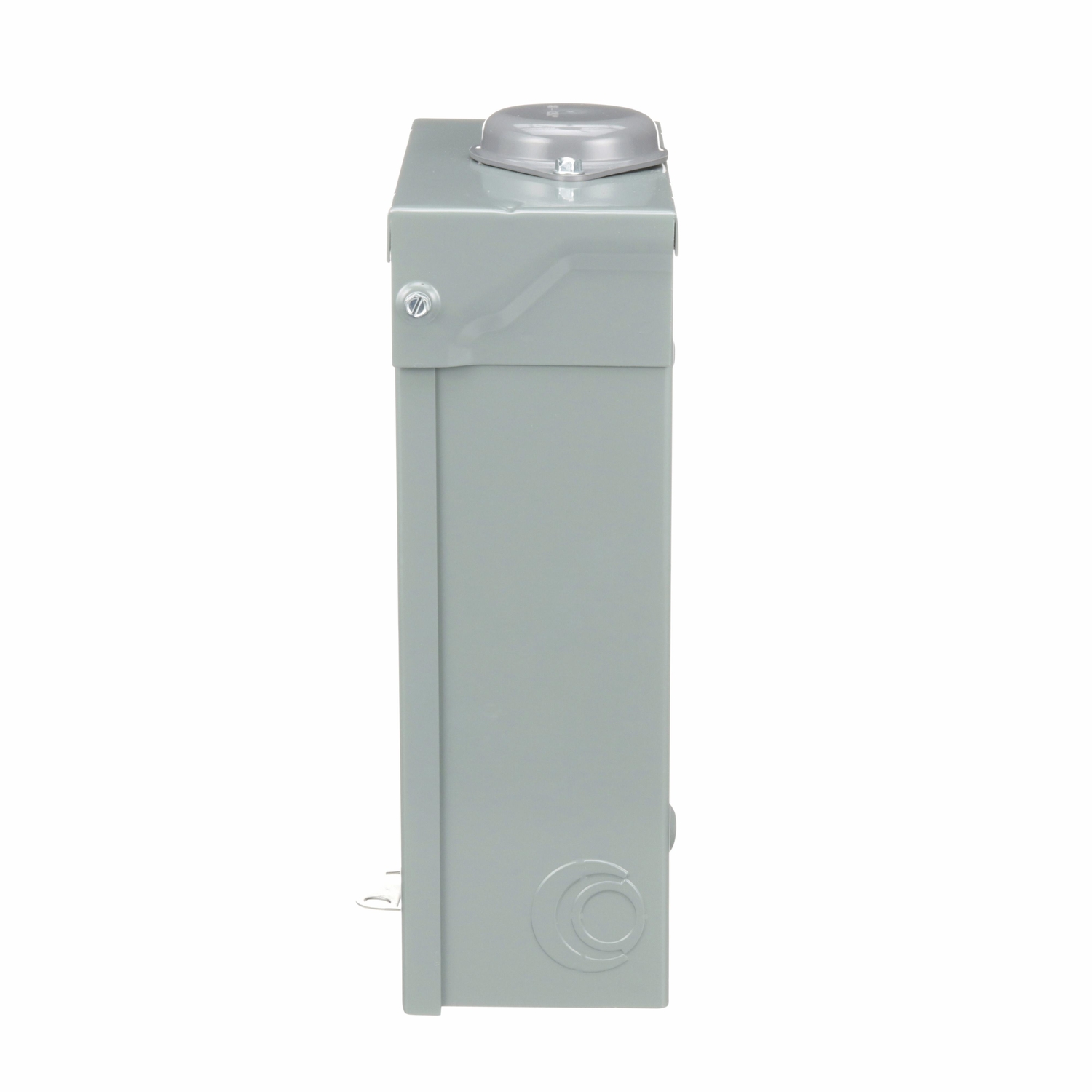

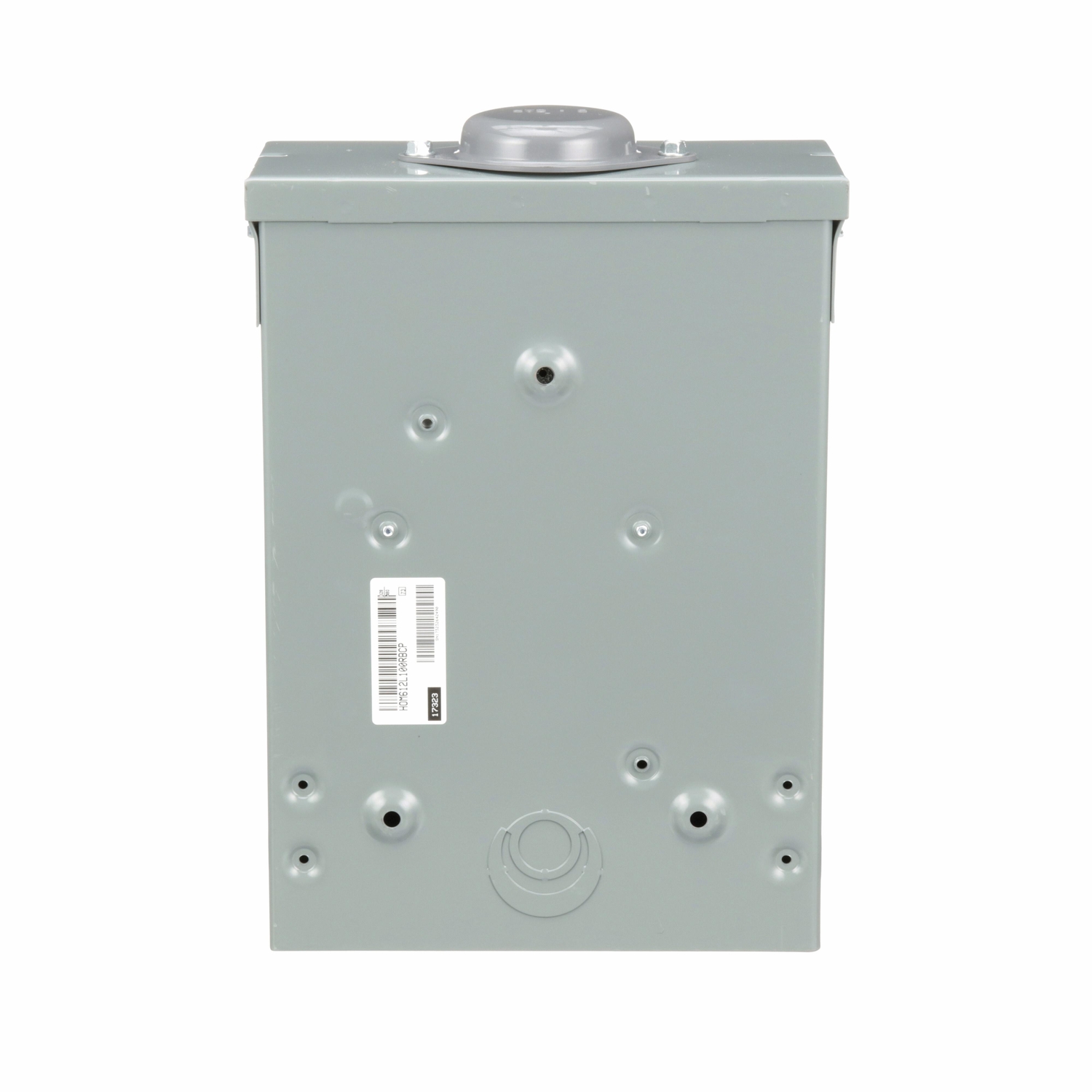

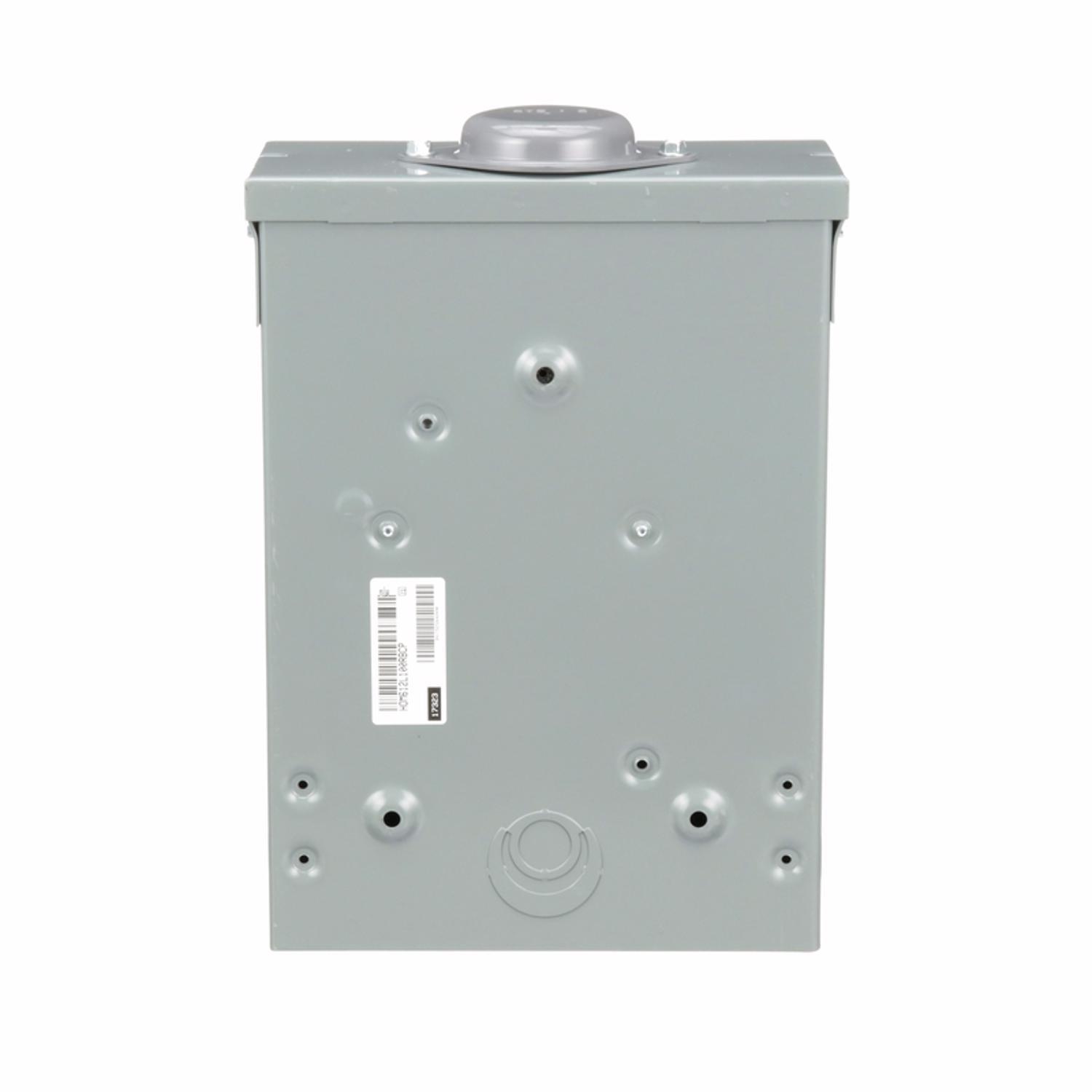

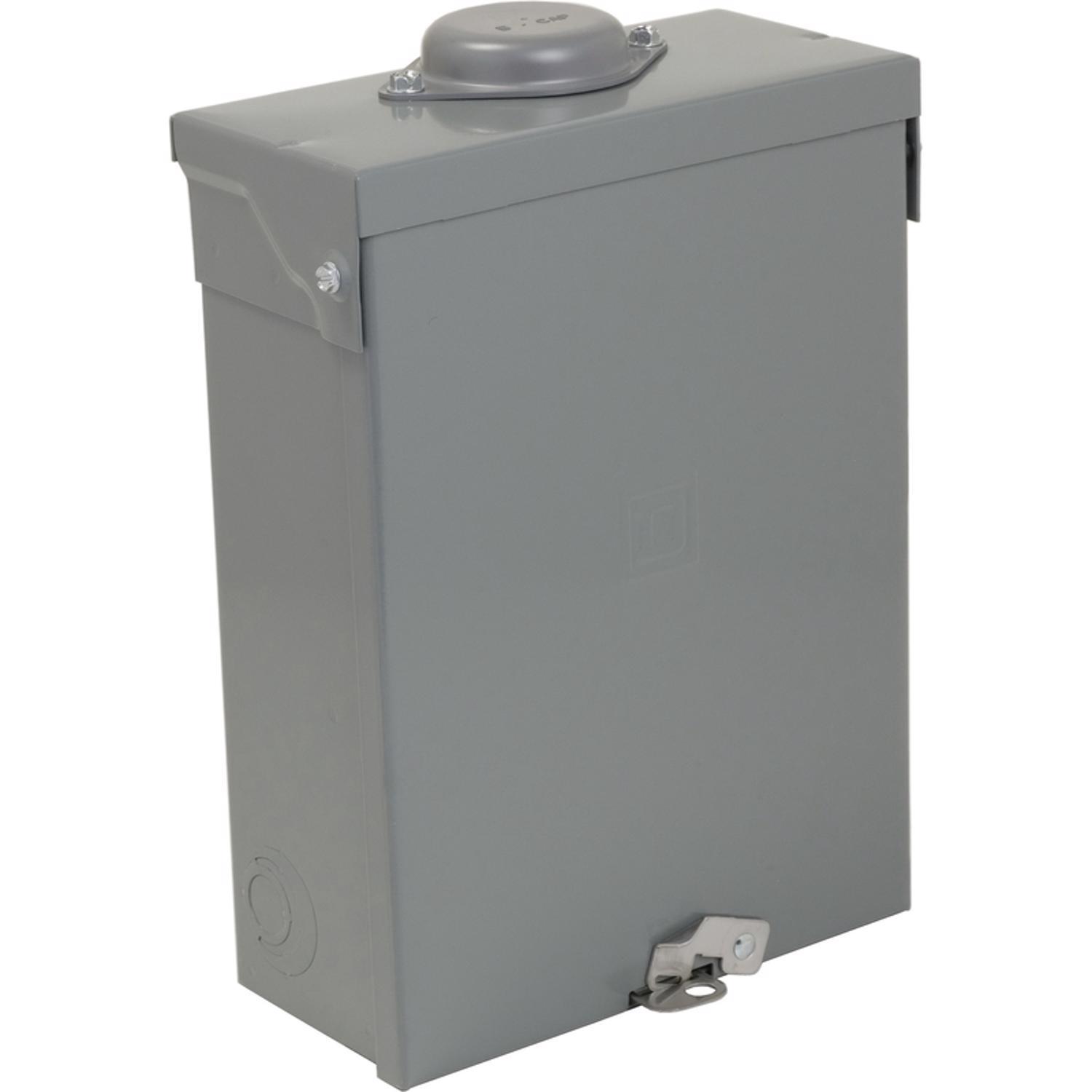

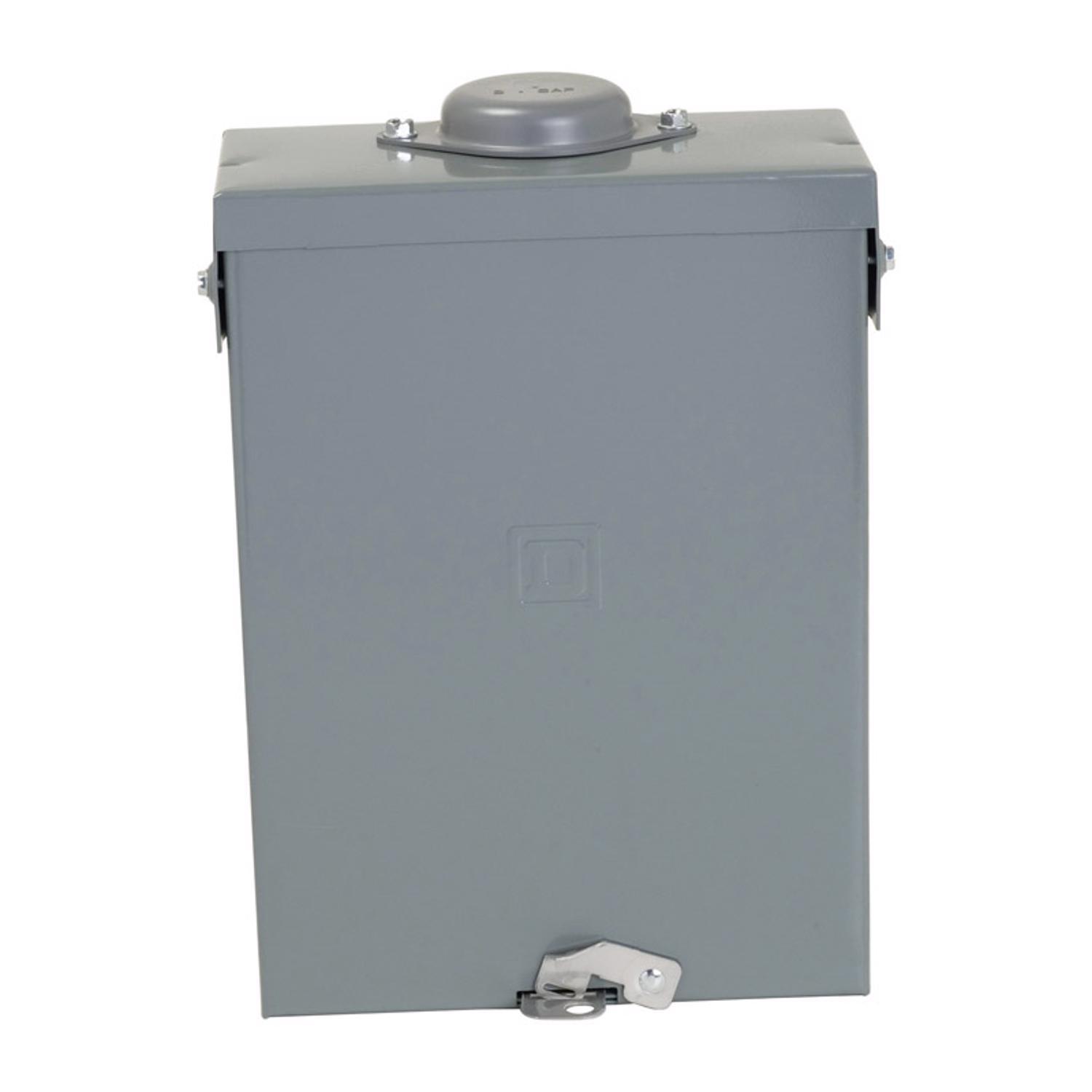

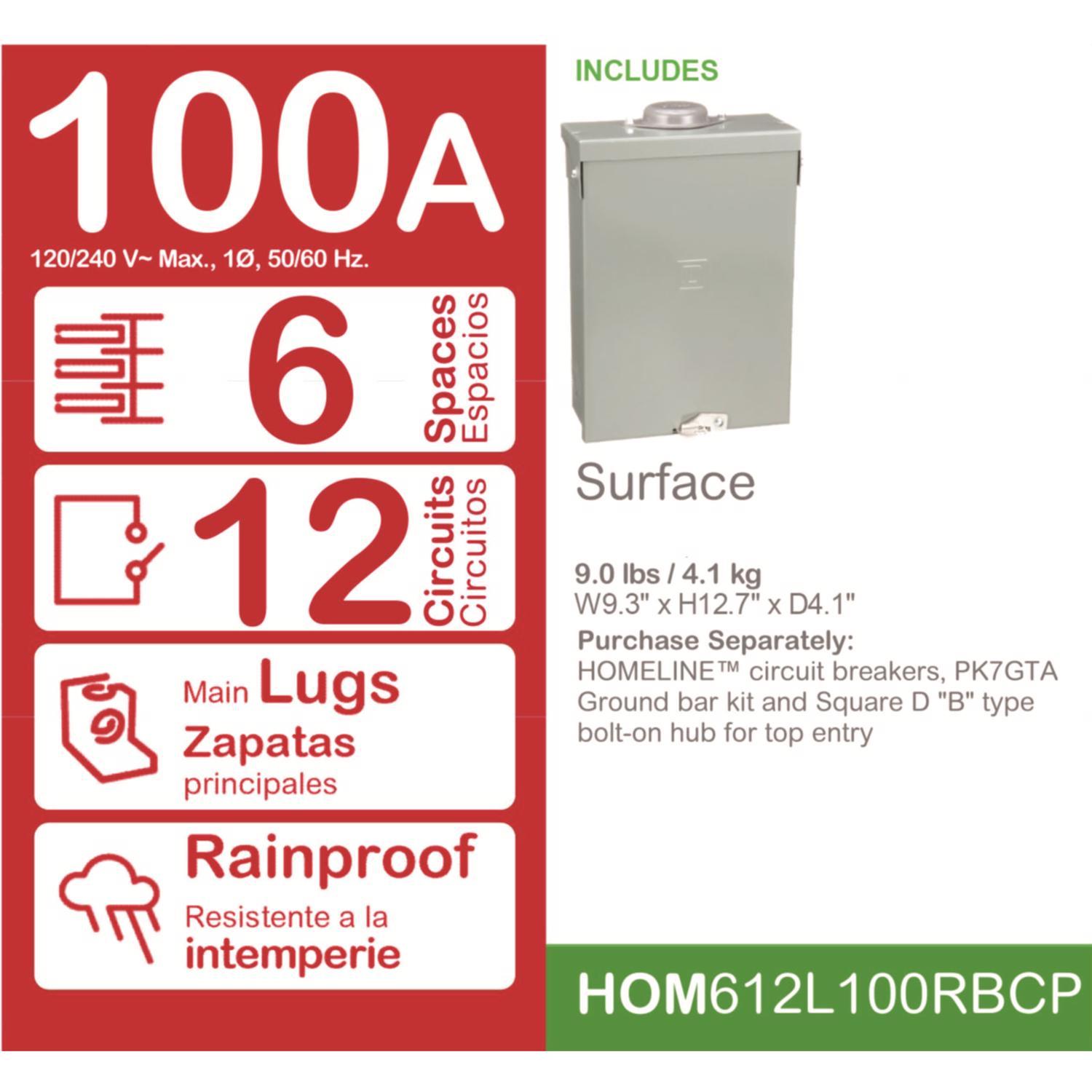

Square D HomeLine 100 amps 120/240 V 6 space 12 circuits Wall Mount Main Lug Load Center

Item No. 34039 34039

The Square D Homeline 100 Amp 6-Space 12-Circuit Outdoor fixed Main Lugs Load Center is UL listed for residential and commercial power distribution . This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10000 AIR short circuit current rating

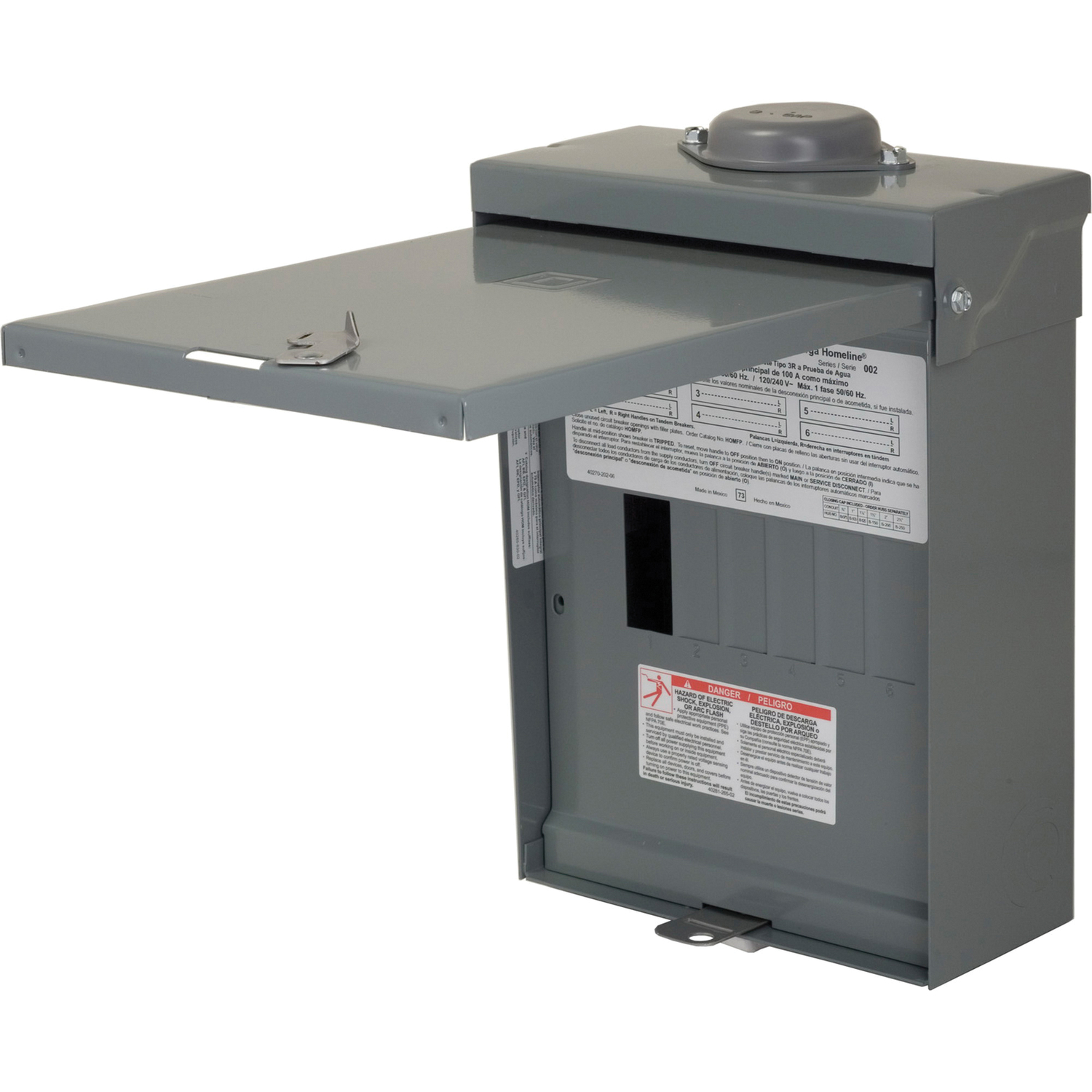

  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/Square Drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • HomeLine
  • 11
  • HOM612L100RBCP
  • 34039
  • N
  • HomeLine
  • Square D
  • Main Lug Load Center
  • 100 ampere
  • Square D
  • No
  • Main Lug
  • 12-11/16 inch
  • 12 circuits
  • Wall Mount
  • 6 space
  • Boxed
  • HomeLine
  • Yes
  • 120/240 volt
  • 8-7/8 inch
  • Outdoor
