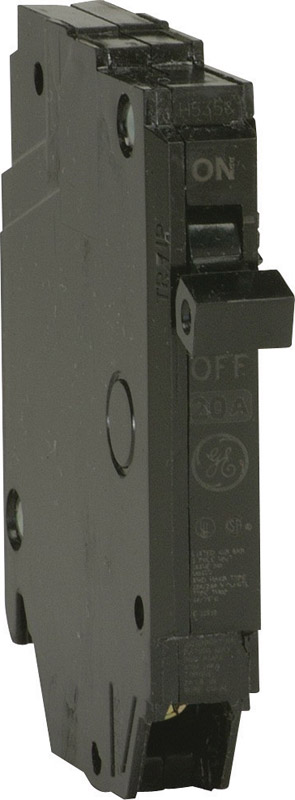

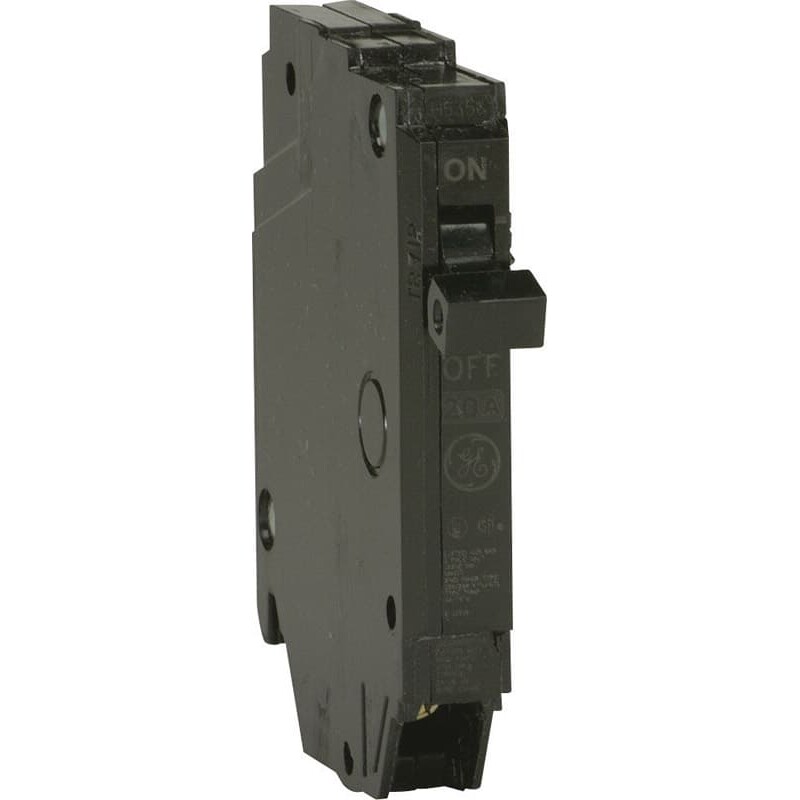

GE Q-Line THQP 20 amps Standard Single Pole Circuit Breaker

Item No. 31714 31714


The GE Q-Line 20 Amp 1/2 in. Single-Pole Circuit Breaker has a tin-plated copper stab that creates permanent and corrosion-resistant connection. The calibration screw is cemented to prevent shifting and provides a stable connection. The attached screw stabilizes the calibration for optimum performance. The breaker case is made of heat-resistant thermoset for stability and structural integrity.
  • Q-Line plug-in breaker for residential load centers
  • Internal common trip bar and box type terminals
  • Quick make, quick break switch
  • Tin-plated copper stab that creates permanent and corrosion-resistant connection
  • Calibration screw is cemented to prevent shifting and provides a stable connection
  • Breaker case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position
  • Meets NEMA standards
  • ANSI certified, CSA and UL Listed
  • GE
  • Q-Line
  • 1
  • THQP120
  • 31714
  • Circuit Breaker
  • N
  • Q-Line THQP
  • 20 ampere
  • Yes
  • Yes
  • Standard
  • 2.4 inch
  • 3.3 inch
  • Plug-In
  • Single Pole
  • Bulk
  • Q-Line THQP
  • Yes
  • 120/240 volt
  • 1/2 inch
  • Indoor
