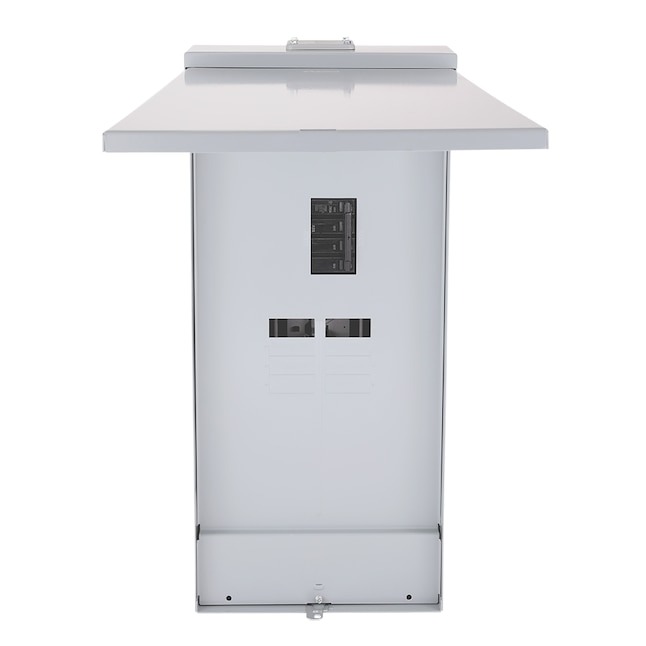

This ABB Reliahome P-Series 200-Amp 8-Space, 16-Circuit Outdoor Main Breaker is designed to be installed as fast and efficient as possible. The P-Series units come with features such as: plug on neutral, factory installed ground terminations, elevated neutral bars with backed out screws, tangential knockouts, one tool installation, and self leveling center keyhole mounts making initial install quick and painless. These units are made with galvanized metal enclosures resisting rust. The unit also has feed through lugs, field extendable neutral bars and an aluminum bus bar. They are UL listed and outdoor NEMA 3R certified. The ReliaHome P-Series load center are compatible with ABB and GE THQL, THHQL, Tandem, Quad, PON and Pigtal versions of AFCI, GFCI, and DFCI Q-Line breakers.
- Plug On Neutral for less wiring and quicker installation
- Compatible with ABB and GE THQL, THHQL Standard, Pigtail and PON AFCI, GFCI and DFCI breakers
- Elevated neutral bars with backed out screws
- Must order TGK12 ground bar separately
- Feed through Lugs
- Closure caps included, hubs ordered separately
- Aluminum bus bar
- Single Phase, 3 wire, 120/240 VAC with max 22kAIC
- UL Listed, NEMA 3R outdoor surface mount
