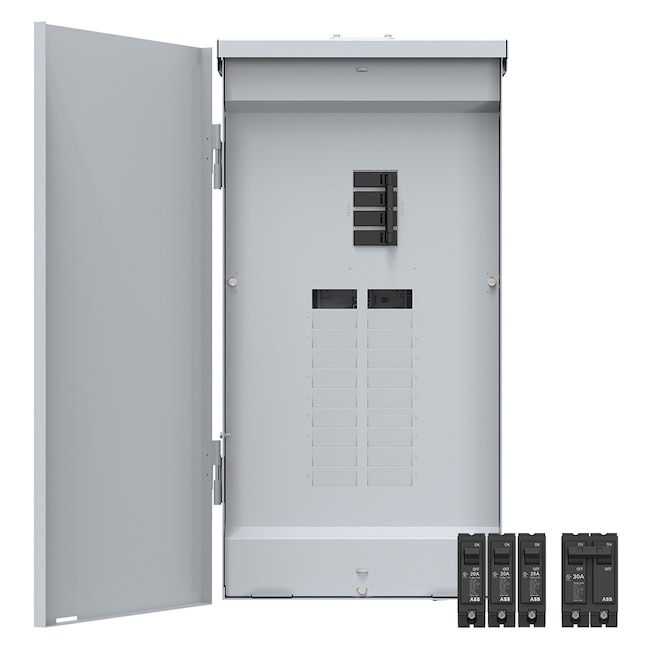

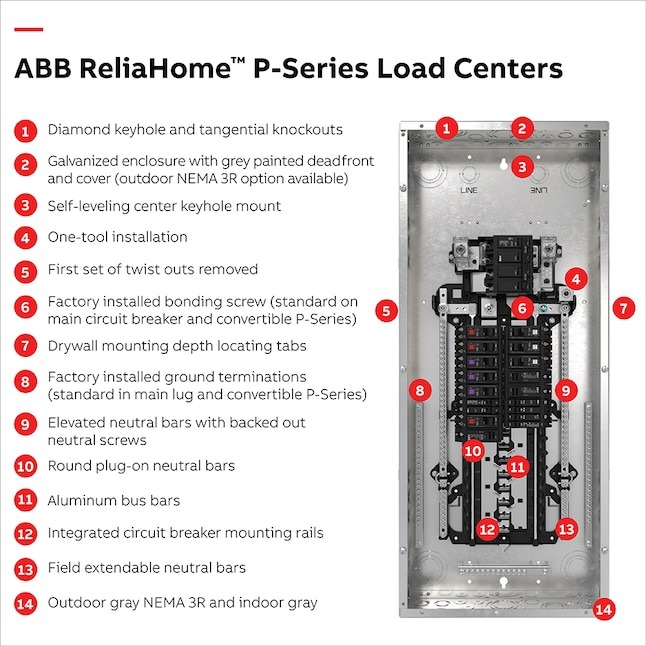

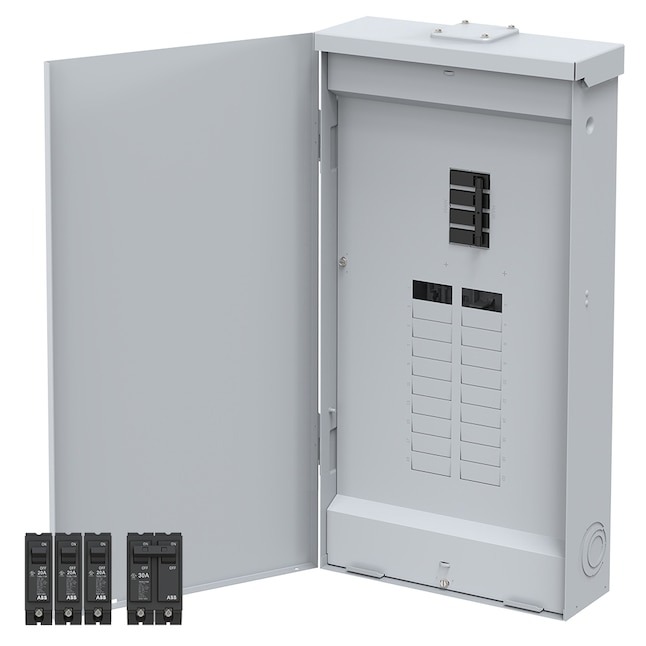

This ABB Reliahome P-Series 200-Amp 20-Space, 40-Circuit Outdoor Main Breaker is designed to be installed as fast and efficient as possible. The P-Series units comes with quick installation features such as: self leveling center keyhole mount, plug on neutral, elevated neutral bars with backed out screws, tangential knockouts, and one tool installation, making initial install quick and painless. It also offers field extendable neutral bars and an aluminum bus bar. They are UL listed and ANSI approved. The ReliaHome P-Series is compatible with ABB and GE THQL, THHQL Standard, Pigtail and PON AFCI, GFCI and DFCI breakers
- Plug On Neutral for less wiring and quicker installation

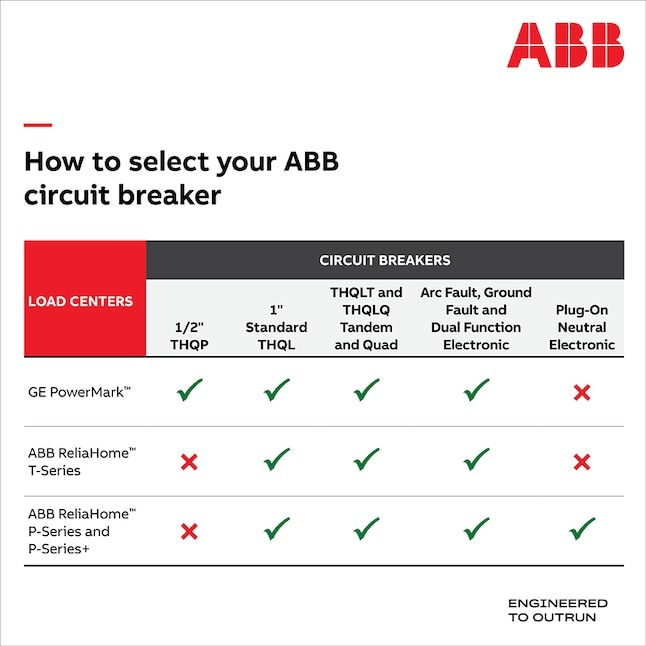

- Compatible with ABB and GE THQL, THHQL Standard, Pigtail and PON AFCI, GFCI and DFCI breakers
- Kit includes (3) THQL1120 20A single pole, (1) THQL2130 30A double pole breakers
- Must order TGK12 or TGK24 ground bar separately
- Closure caps included, hubs ordered separately
- NEMA 3R outdoor surface mount
- Aluminum bus bar
- Factory installed 200 Amp main breaker
- Accommodates top and bottom feed applications
