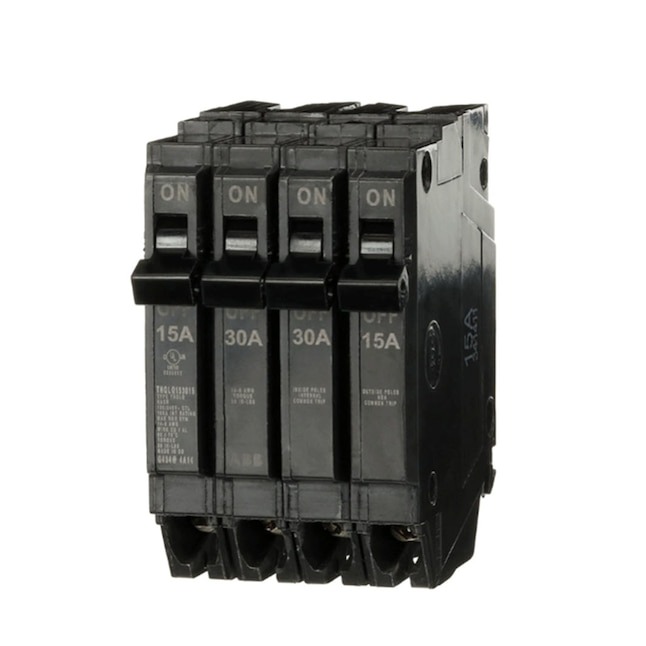

ABB Quad breakers offer ability to get various combinations of single and double pole circuits within two 1 in. spaces. They are compatible with all ABB Reliahome and GE PowerMark panels and Meter Socket Load Centers. The Quad breakers are for use on Single Phase 120/240 & 120/208 VAC Systems. The breakers are NEMA approved, ANSI Certified, and CSA & UL Listed. They offer interuption protection of 10 kAIC and have conductor rating of 60C/75C . For use with wire ranges AWG # 14-8 in copper and #12-8 in Aluminum. The combination of features such as; Quick Make/Break mechanism, Robertson/Flathead combination screws and Fast wiring box type lugs allow for quick and easier installations saving time.

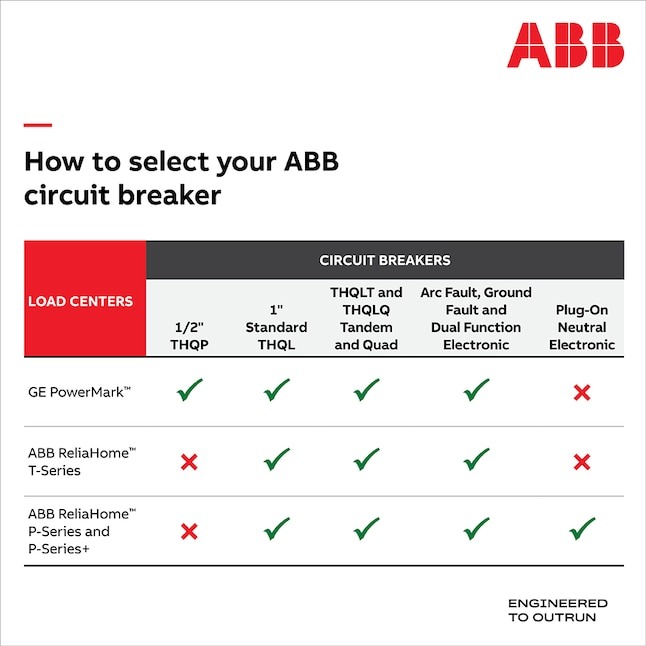

- Compatible with ABB ReliaHome & GE PowerMark Load Centers
- Quad design allows (2) 15-amp single pole breakers and (1) 30-amp double pole breaker in two 1 in. spaces
- Easy-to-read trip indication via 3-handle positions: on, tripped (center position) and off
- Quick-make-quick-break mechanism
- Fast wiring box type lugs keep wire(s) in place while tightening
- For use with AWG wire ranges of #14-8 Copper and #12-8 Aluminum
- Combination robertson/flat head lug screws for flexible installation
- NEMA approved, ANSI Certified, and CSA & UL Listed
