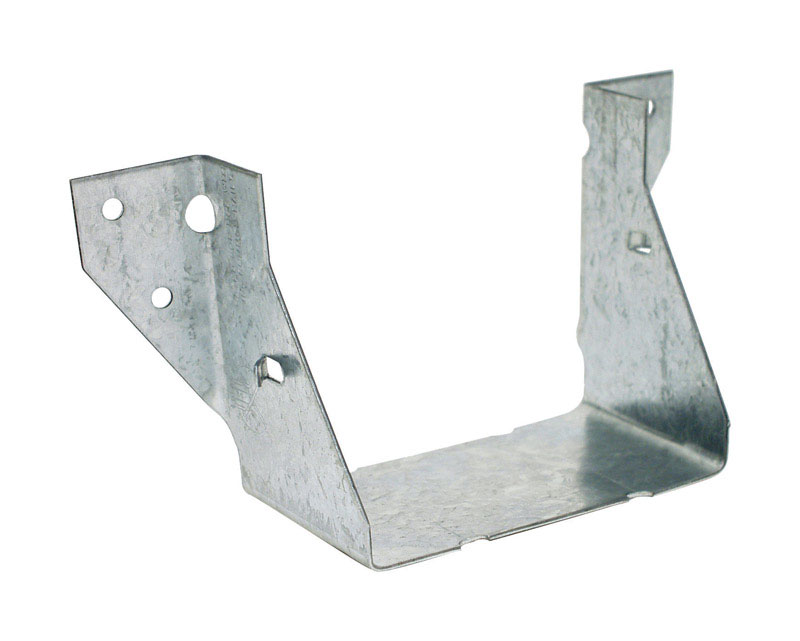

Simpson Strong-Tie Galvanized Steel Joist Hanger 3 in. H x 3-9/16 in. W 18 Ga.

Item No. 500409 500409


Simpson Strong-Tie Galvanized Steel Joist Hanger 3 in. H x 3-9/16 in. W 18 Ga.
  • Use all specified fasteners
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products
  • Use Type 316 stainless-steel nails with our stainless-steel connector products
  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads
  • Not designed for welded or nailer applications
  • 16d sinkers (0.148 in. dia. x 3 1/4 in. long) may be used where 10d commons are specified with no reduction in load
  • Where 16d commons are specified 10d commons or 16d sinkers (0.148 in. dia. x 3-1/4 in. long) may be used at 0.85 of the table load
  • With 2x carrying members use 10d x 1 1/2" in. nails into the header and 10d commons into the joist reduce the load to 0.64 of the table value
  • 7
  • LUS44
  • 500409
  • Galvanized Steel
  • Joist Hanger
  • 3 in.
  • 3-9/16 in.
  • 18 Ga.
  • 2-3/8 in.
  • Galvanized Steel
  • 10d
  • Galvanized Steel
