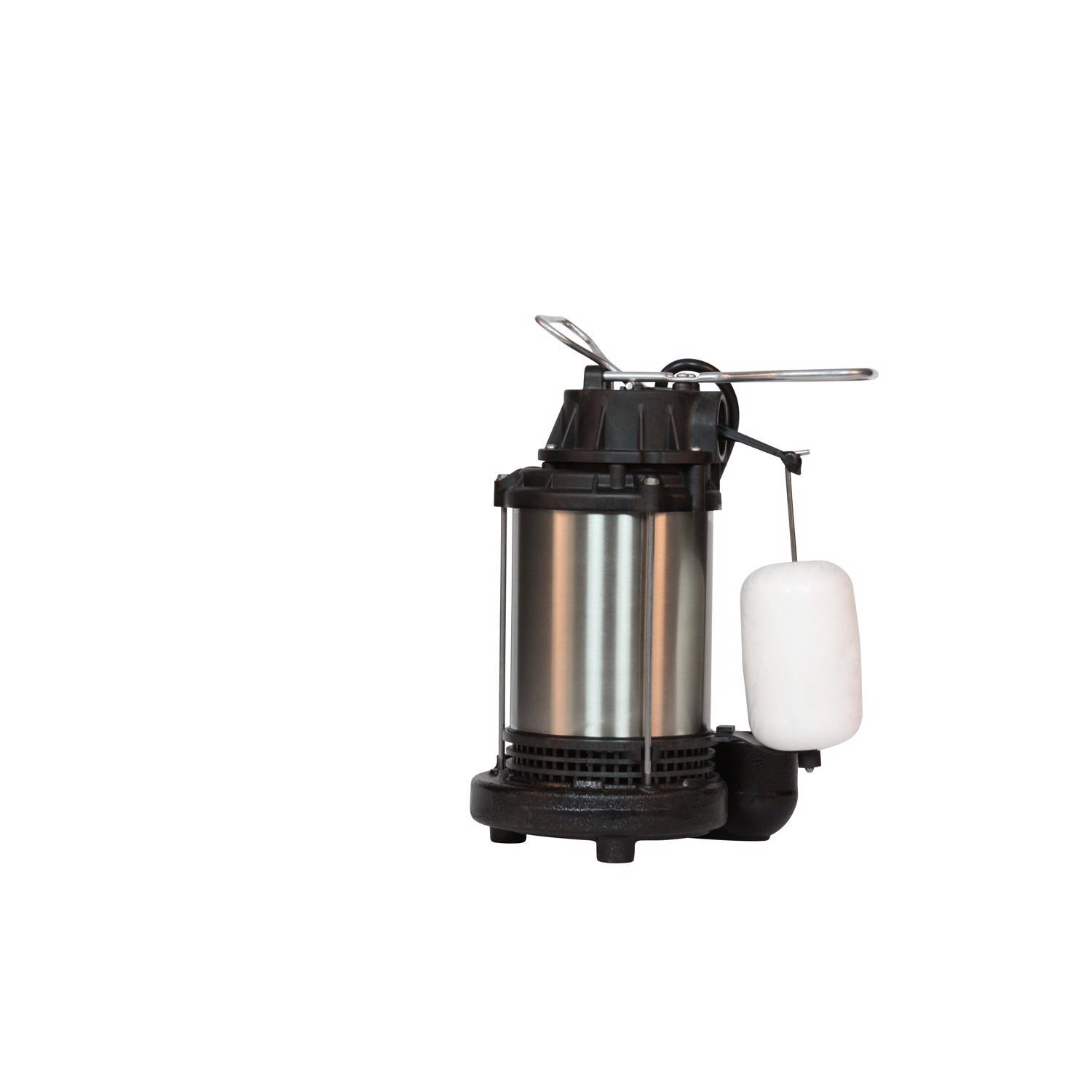

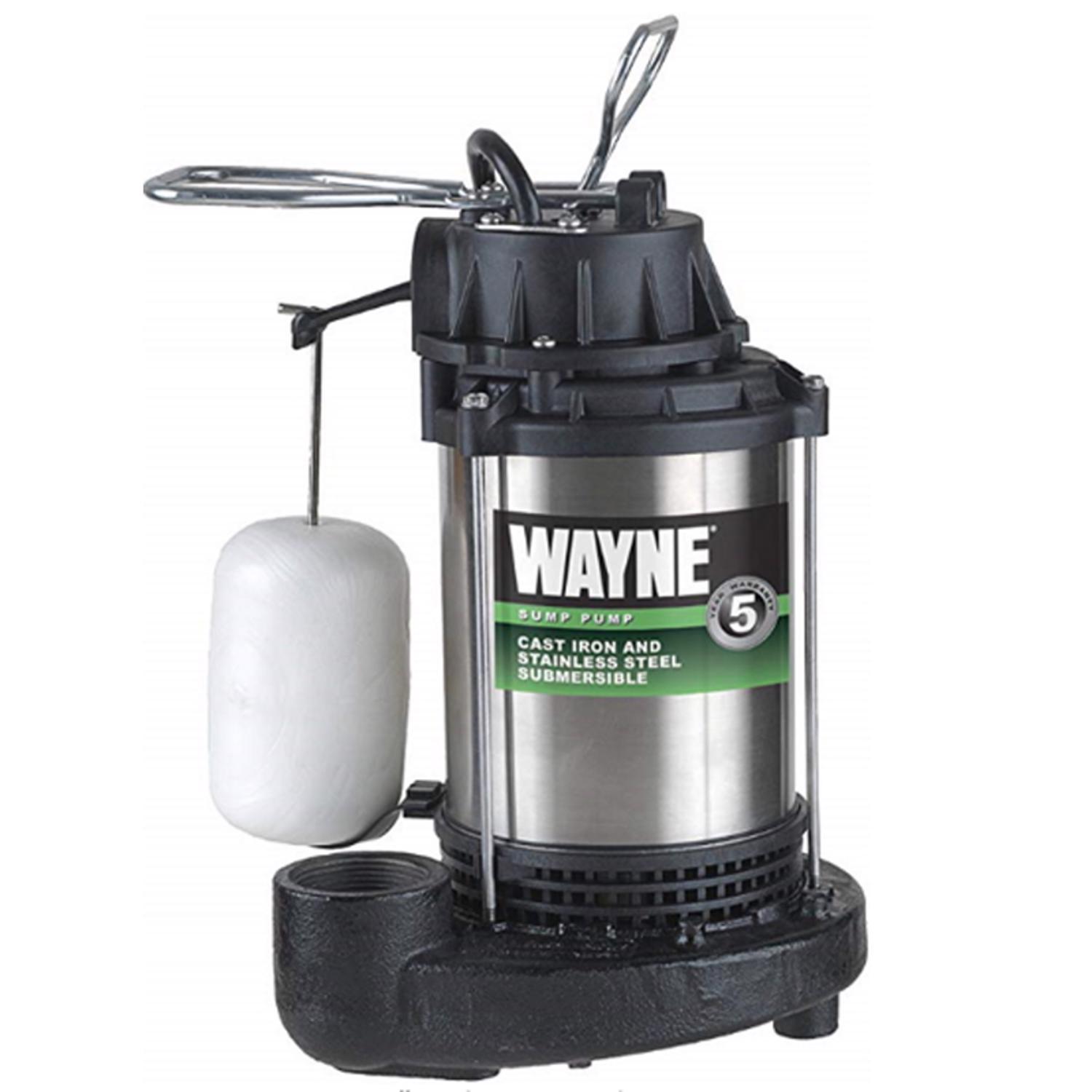

Wayne 1/2 HP 5100 gph Stainless Steel Vertical Float Switch AC Sump Pump

Item No. 4003742 4003742


Tested to 1 million cycles; For performance that lasts, Wayne Pumps exceeds an average life of 1 million cycles. Wayne Pumps' energy-efficient motors and engineered design provide the ultra-quiet experience you won't believe. Durable epoxy-coated and rugged cast iron construction, for long life in tough sump pump applications. High performance; max. flow rate is 5100 gallons per hour; 3840 GPH at 10 ft. of discharge lift. Integrated vertical float switch with solid, leak free polypropylene float for automatic operation; 9 in. On level and 4 in. Off level. No need for weep holes; unique top suction design reduces clogging and prevents air lock condition. Engineered with upper and lower ball bearings, in sealed oil bath, for virtually silent operation. Designed with premium john crane carbon/ceramic shaft seals for quality that lasts.
  • Cast iron seal plate prevents leaks and galvanic corrosion
  • 1-1/2 In. NPT discharge for compliance with building codes
  • Float guard, protects switch from hang-ups from debris and side of pit
  • Abrasion resistant glass reinforced polycarbonate impeller for reliability
  • 8 ft. water resistant power cord provides easy access to nearby GFCI protected outlet
  • For easy installation, use in 11 in. diameter or larger sump basins
  • Wayne
  • 19
  • CDU800SS
  • 4003742
  • Sump Pump
  • N
  • 3.8 ampere
  • 10 inch
  • 12 inch
  • 14 inch
  • 1/2 HP (horsepower)
  • Stainless Steel
  • 5100 gph
  • 77 degree Fahrenheit
  • 33 degree Fahrenheit
  • Vertical Float Switch
  • 1 1/2 inch
  • 120 volt
  • 10 inch
  • AC
  • 20 foot
  • Top Suction
  • CSA and UL
  • 3840 gph
  • 2040 gph
  • 3000 gph
  • 9 in./4 in.
