Industry-leading quality, patented Reset Lockout technology, and the fastest and easiest installation on the market make Lever Edge GFCIs a smart choice for ground-fault circuit interrupter protection. The color-coded lever terminals provide the foundation for safe and quick installation by helping to rapidly identify the correct terminal for wiring, including a lever terminal for the ground wire. A unique clearly identifiable BLUE lever for the load wire reduces the risk of miswiring (LINE/LOAD reversal). The lever termination assures a positive connection has been made. This patented design has a snap feature with an audible 'click' so installers can be confident with every termination.
- Provides continuous ground-fault protection - detects and trips on actual ground-fault even during self-test
- Auto-monitoring exceeds UL requirements and adapts to more frequent testing if a potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status, as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault

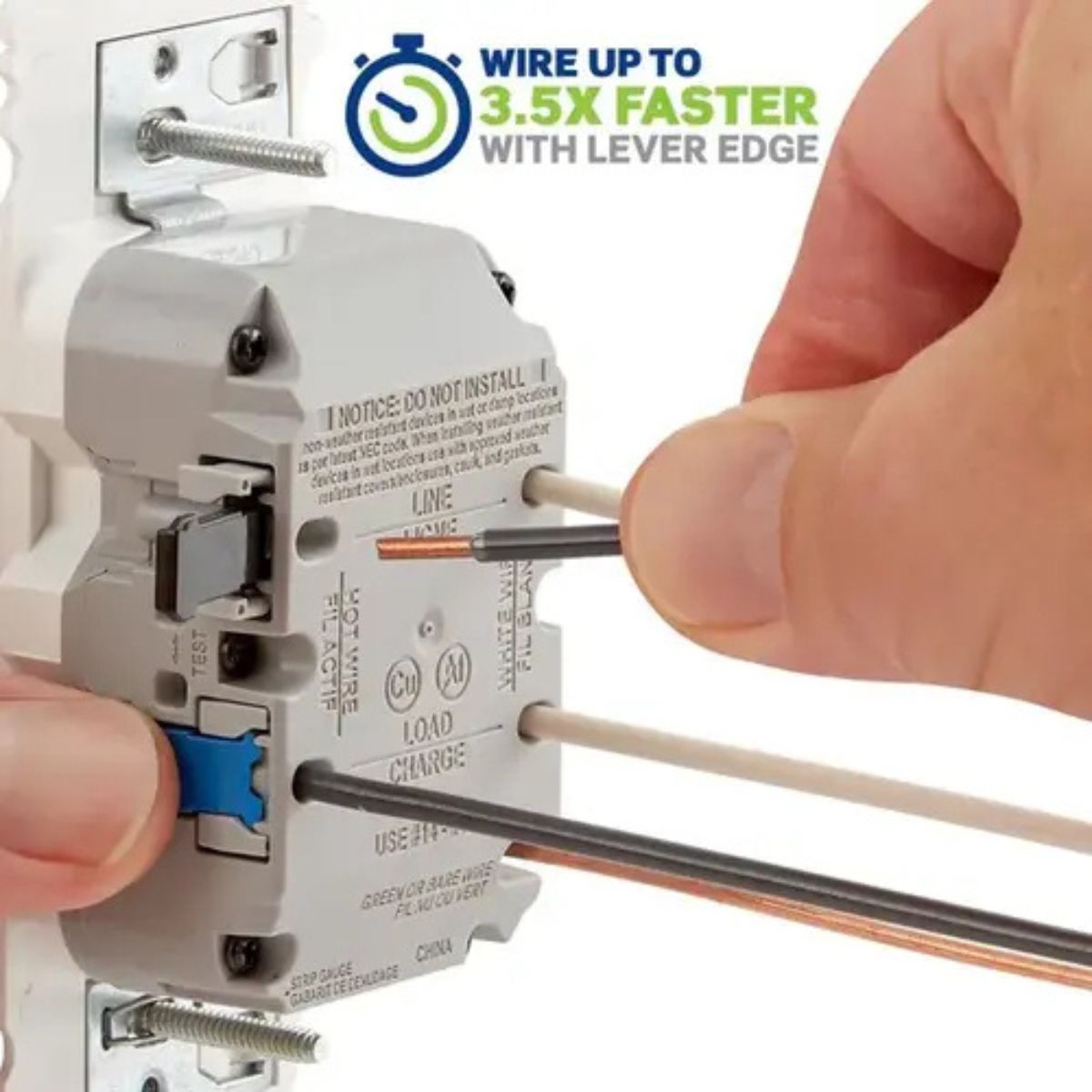

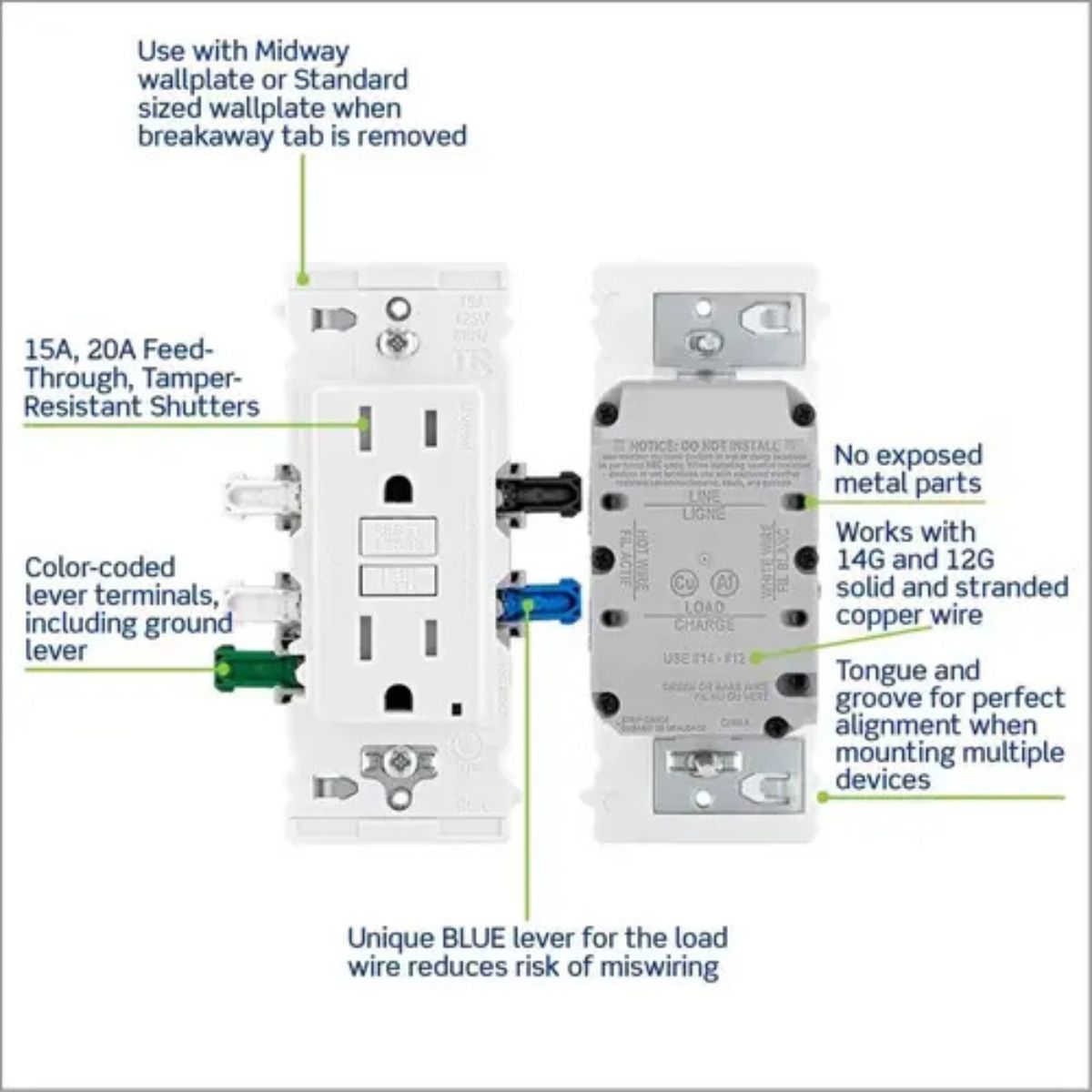

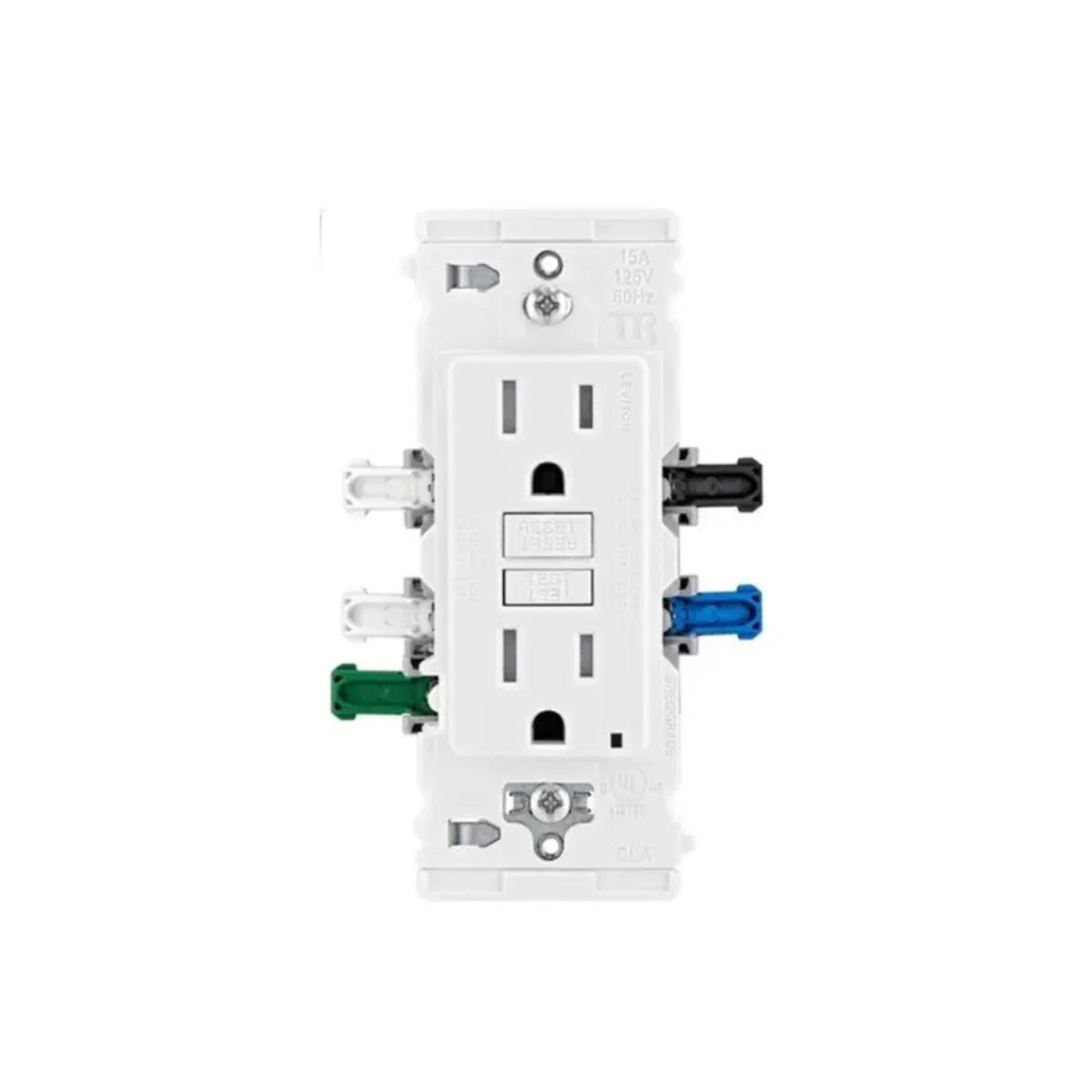

- Color-coded lever terminals for fast, efficient wiring; unique BLUE lever for the load wire reduces risk of miswiring
- Strap's unique tongue and groove alignment feature offers quicker trim out on multi-gang Lever Edge installations

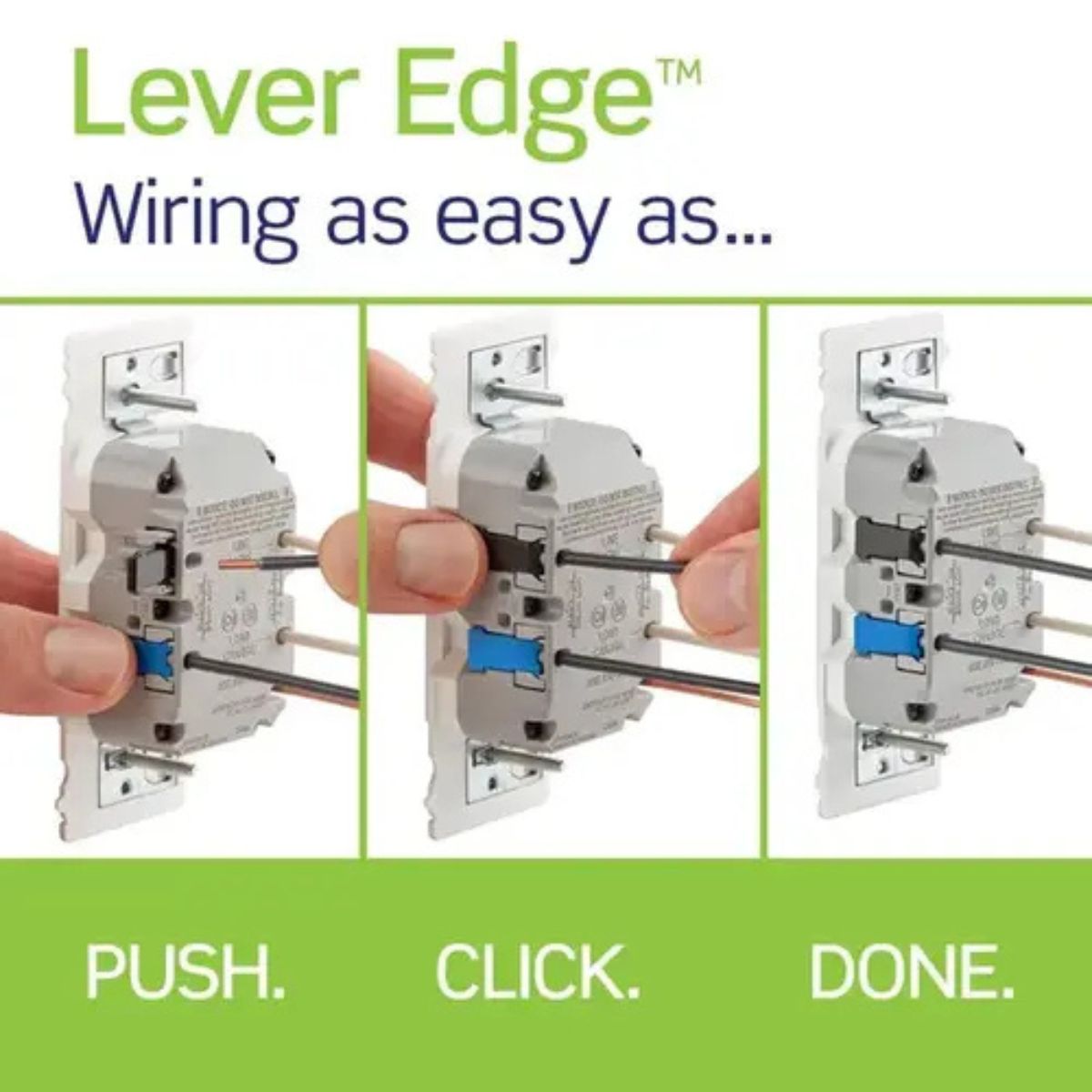

- Levers have a "snap" feature to assure connection has been made; audible 'click' confirms lever door is closed
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Lever connectors work with 12 gauge and 14 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all Lever Edge devices
- Easily accessible test openings for circuit testers
- Longer and wider strap is compatible with midway wall plates, and with standard sized wall plates when breakaway tab is removed
- Can be used with Decora wall plates and Decora Plus screwless wall plates (sold separately)
