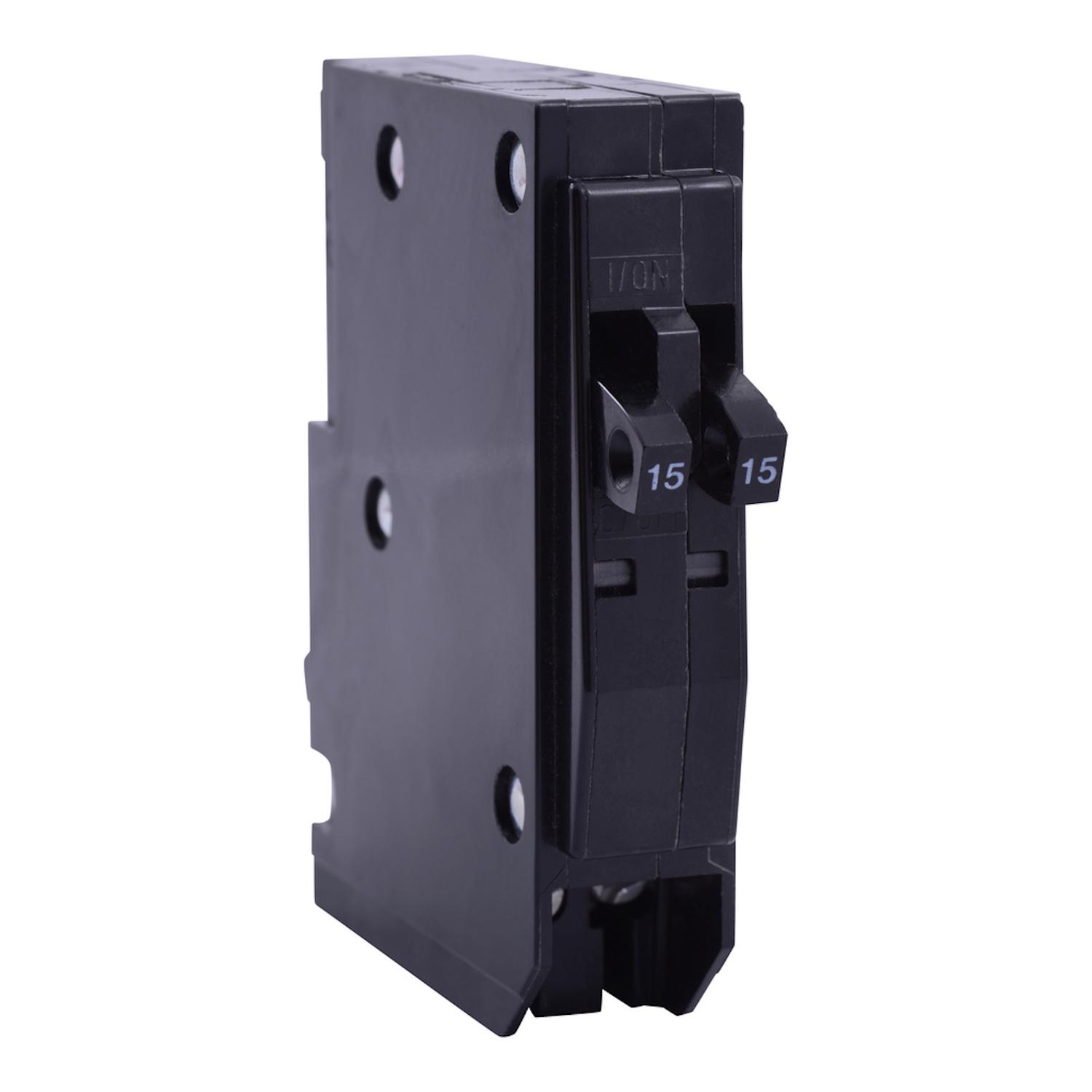

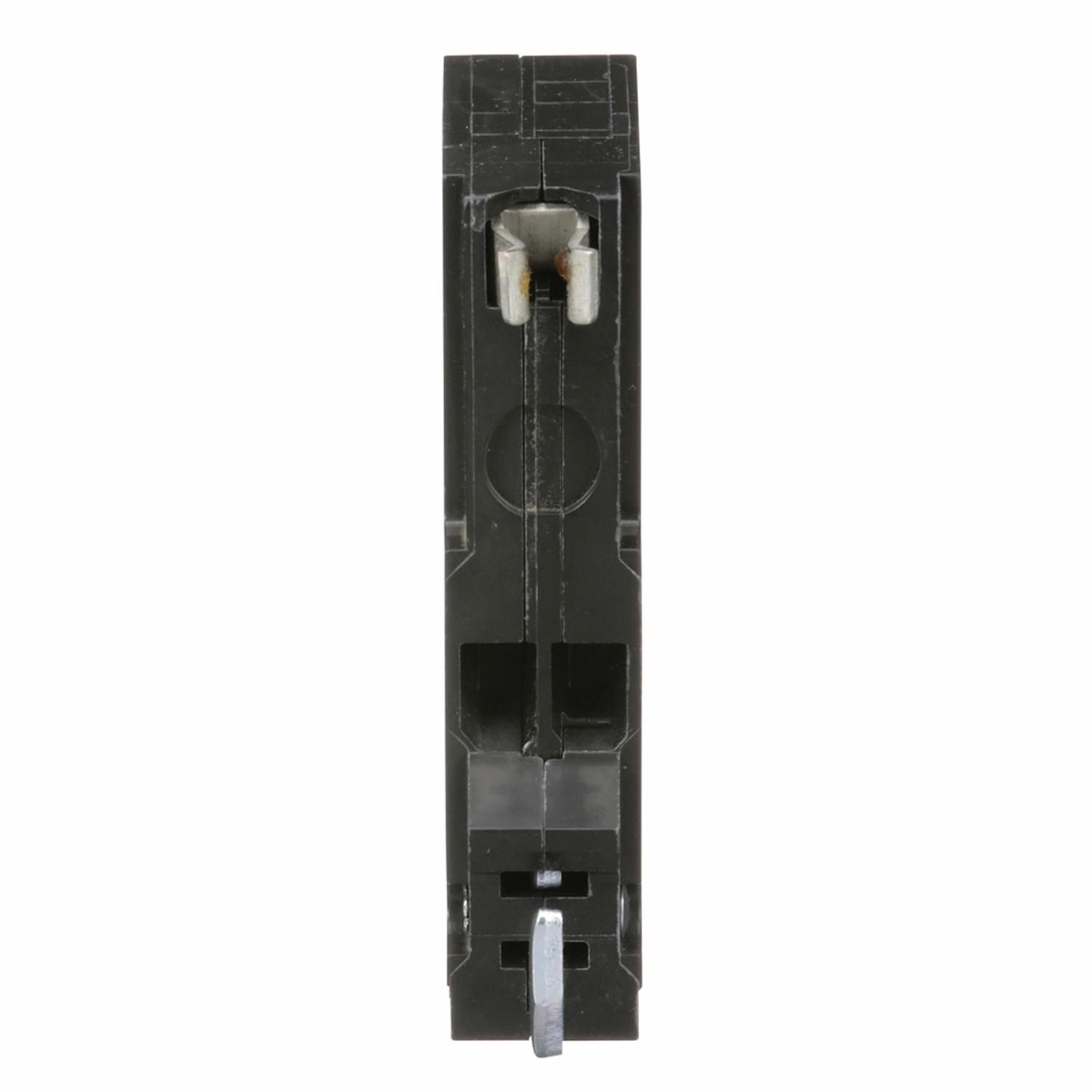

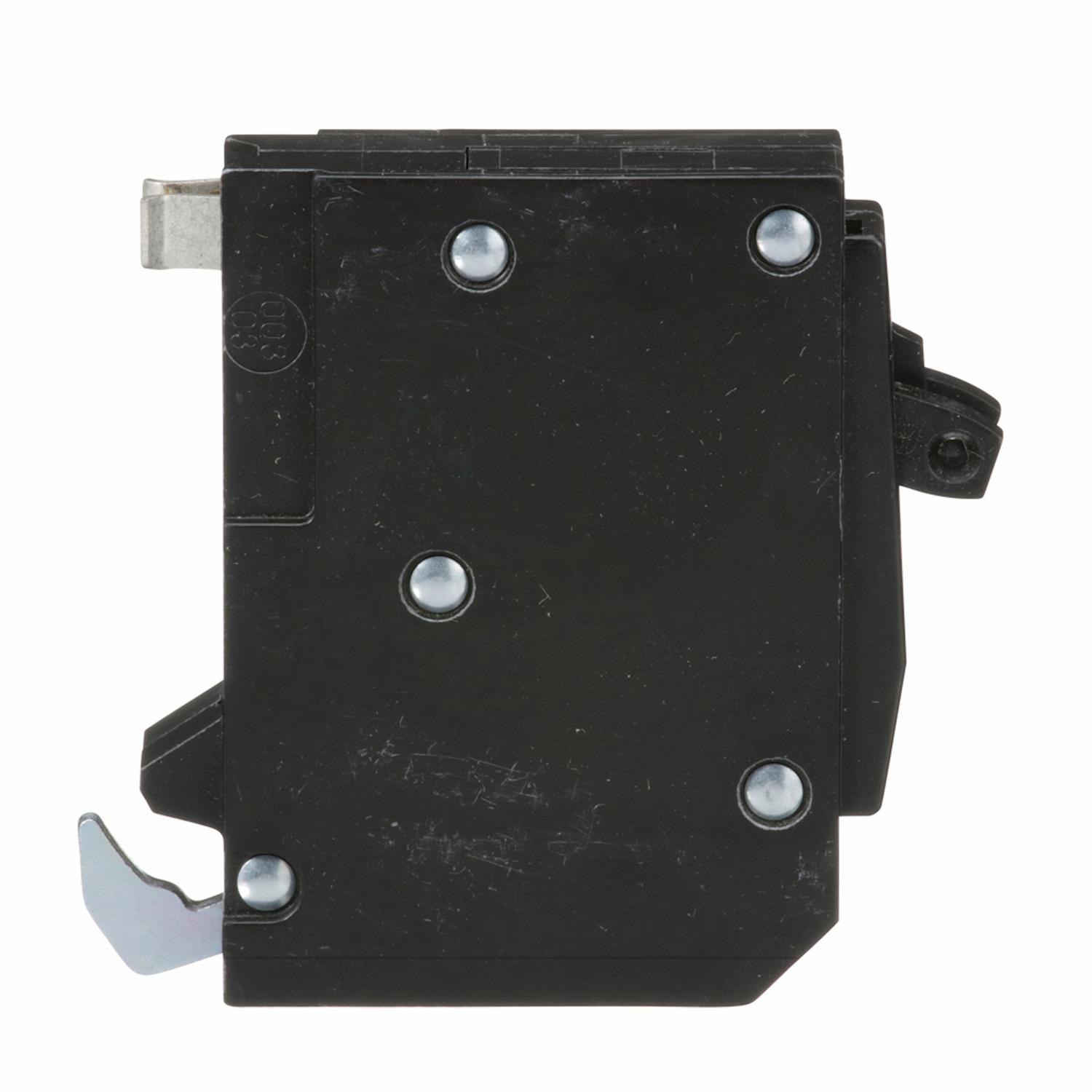

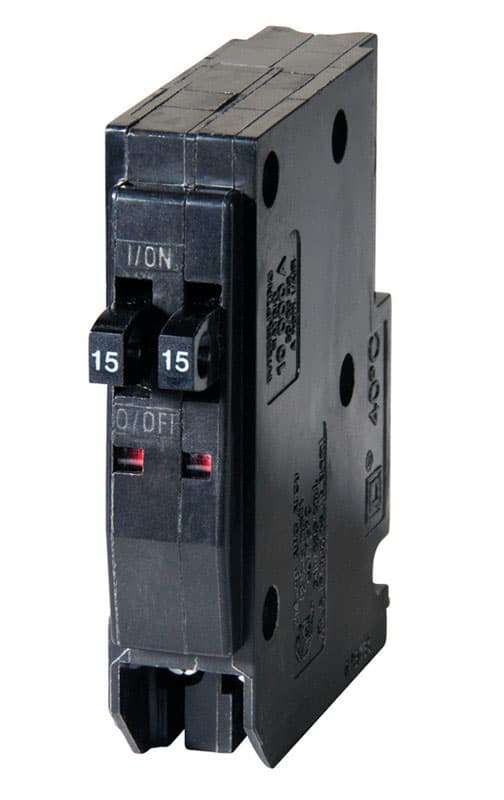

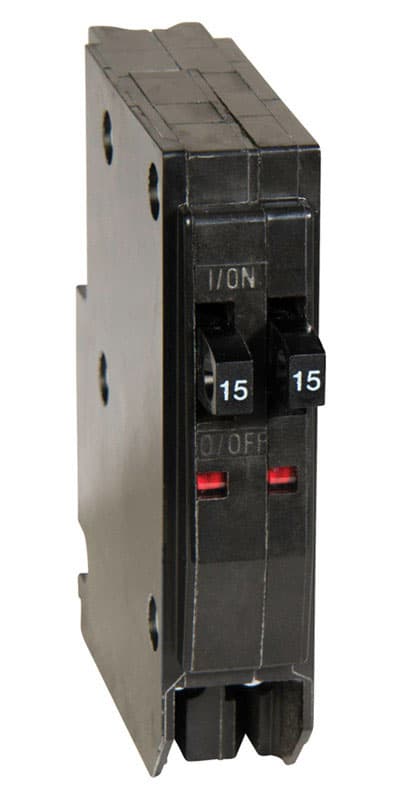

Square D QO 15/15 amps Tandem Single Pole Circuit Breaker

Item No. 30629 30629

The Square D by Schneider Electric QO 15 amp single-pole tandem circuit breaker is intended for overload and short-circuit protection of your electrical system. This breaker offers 2 circuits in the space of just 1 and is compatible with QO load centers, CSED devices and NQOD panel boards. The ANSI-certified and UL-listed unit is rated for 120 or 240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between in off and in on and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
  • QOT tandem breakers have a mounting cam
  • Installation into a QO load center can only be made in those positions having a mounting pan rail slot
  • 10A to 30A circuit breakers are suitable for use with 60 degree Celsius or 75 degree Celsius conductors
  • 35A-125A circuit breakers are suitable for use with 75 degree Celsius conductors
  • QO
  • QO
  • 1
  • QOT1515CP
  • 30629
  • Circuit Breaker
  • N
  • QO
  • Square D
  • 15/15 ampere
  • Square D
  • No
  • Tandem
  • 3.44 inch
  • 3.22 inch
  • Plug-In
  • Single Pole
  • 1 space
  • Sleeve
  • QO
  • QO
  • No
  • 120/240 volt
  • .75 inch
  • Indoor
