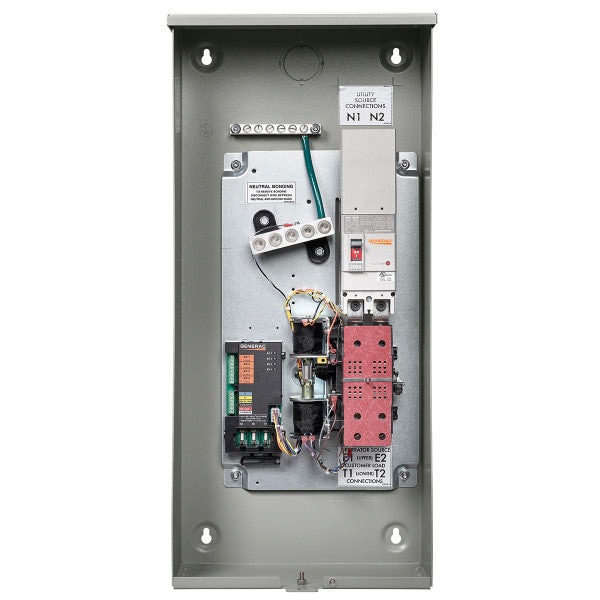

Generacs 200 Amp single-phase service NEMA 3R rated automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. This automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a Smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.
- Seamless Power Transitions: Ensure uninterrupted power supply during outages with this 200 Amp Automatic Transfer Switch. Designed for use with single-phase generators, this transfer switch seamlessly transfers power from utility to generator
- Advanced Digital Power Management: Utilize cutting-edge digital power technology (DPM) to manage up to 4 individual HVAC loads with no additional hardware. Equipped to provide efficient and intelligent power distribution for your essential home systems
- Reliable Service Disconnect: Features a built-in service disconnect and is UL Listed, offering a device that interrupts excessive voltage and allows for manually disconnecting your home or business from the electrical utility
- Trusted Generac Quality: Rely on the #1 selling home standby generator brand for your power needs. Whether for your home, business, or personal use, Generac provides best-in-class power products, ensuring peace of mind and reliable performance
- Easy Installation: Generac recommends your new transfer switch to be installed by a certified and licensed electrician. Measures 6.3" x 30.0" x 13.5" overall and mounting holes are 26.8" x 10.5
- Generac
- RXSW200A3
- 320726
- 13.5 in.
- 6.3 in.
- 30 in.
- 39 lbs
- Smart Switch
- 240 Volts
- Normally Open
- Screw Or Blade
- Rotary
- Aluminum
- IP54
- 3
