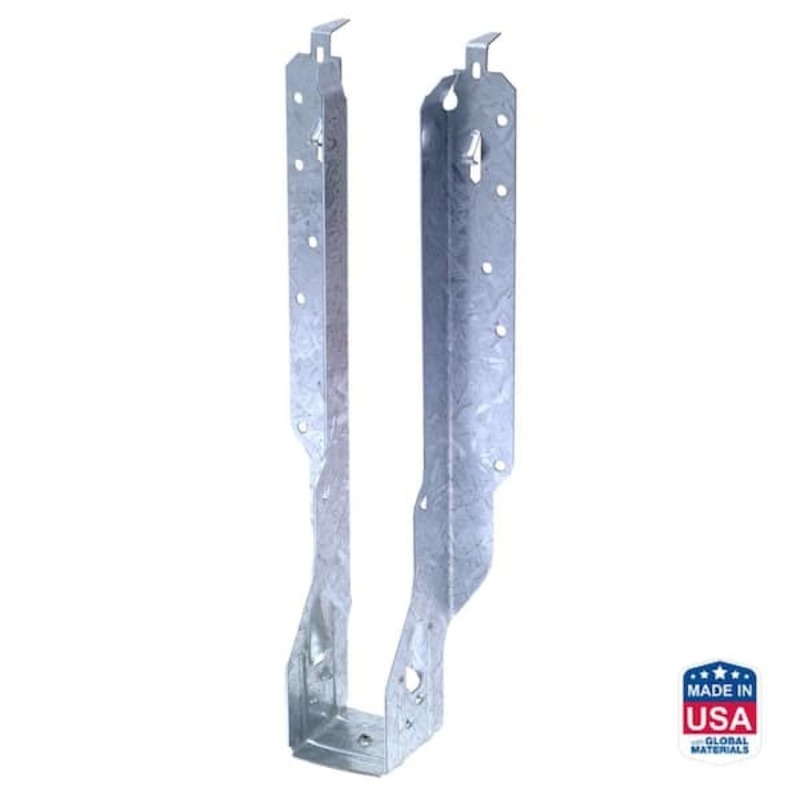

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The IUS series is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger and is fully compatible with shallow-flange I-joists.
- Installation is fast with the Strong-Grip seat, easy-to-reach face nails and self-jigging locator tabs
- Fasten hanger to header; position I-joist into hanger and snap into place
- Seat width: 1-7/8-in
- Height: 14
- Actual joist size: 1-3/4-in x 14-in
- Made from 18-Gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with 10d common nails
