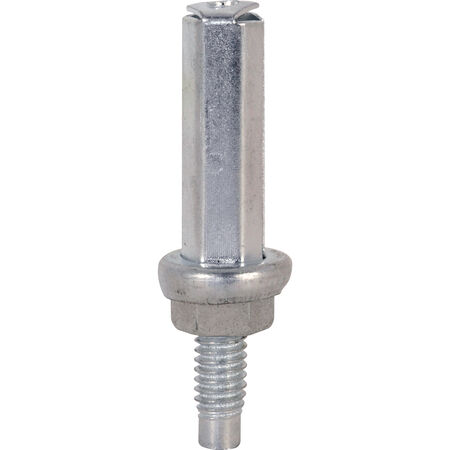

This is a bottom mount pivot used on Acme, Cox and a variety of other bi-fold doors. The steel base houses a 1/4 in. pivot with a hex head nut for adjustment. It fits 1 in. to 1-3/8 in. thick bi-fold doors weighing up to 50 lbs. each.
Used by Acme, Cox and a variety of other bi-fold door manufacturers
Holds up to 50 lbs. bi-fold doors
Fits doors 1 in. to 1-3/8 in. thick
Bottom mount design
Hex head adjustment nut
Adjustable wrench will be required for installation
For further dimensional information, please see the line drawing
